电动电磁阀 52直动式双通燃气
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 操控类型
- 直动式
- 轨道/位置
- 双通
- 媒介
- 燃气
- 阀体
- 螺纹, 塑料
- 其他特性
- 电动, DIN, 安全, 隔膜, 波纹管
- 通径
最多: 6 µm
最少: 2 µm
- 电压
最多: 230 V
最少: 12 V
- 温度
最多: 100 °C
(212 °F)最少: -20 °C
(-4 °F)- 压力
最多: 6 bar
(87 psi)最少: 0 bar
(0 psi)
产品介绍

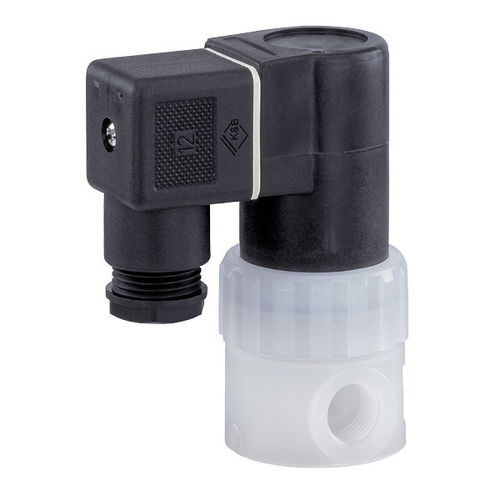

Compact solenoid valve up to DN 6 for neutral or aggressive media
The GEMÜ 52 directly controlled 2/2-way solenoid valve has a completely plastic encapsulated coil. The armature is sealed by a bellows made of PTFE backed by an additional safety diaphragm. The valve body is available in various materials and with a straight through or angle valve body design.
The GEMÜ 52 directly controlled 2/2-way solenoid valve has a completely plastic encapsulated coil. The armature is sealed by a bellows made of PTFE backed by an additional safety diaphragm. The valve body is available in various materials and with a straight through or angle valve body design.
- Compact size for the smallest nominal sizes
- Suitable for clean and slightly contaminated media
- Hermetic separation between medium and actuator
- The solenoid can be replaced without removing the valve body from the piping
