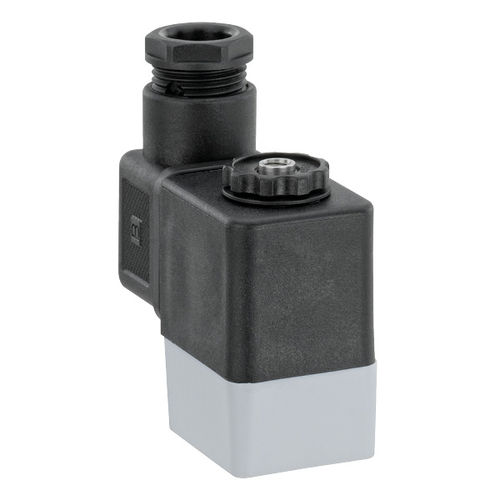

直动式电磁阀 03263 通型燃气模块化
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 操控类型
- 直动式
- 轨道/位置
- 3 通型
- 媒介
- 燃气
- 阀体
- 紧凑型, 塑料, 螺纹, 模块化
- 其他特性
- ATEX
- 通径
2 mm
(0.079 in)- 电压
最少: 24 V
最多: 230 V
- 温度
最少: -10 °C
(14 °F)最多: 50 °C
(122 °F)- 压力
最少: 0 bar
(0 psi)最多: 10 bar
(145 psi)
产品介绍
3/2-way pilot valve for installation in control cabinets or as a valve terminal
The GEMÜ 0326 directly controlled 3/2-way pilot solenoid valve is designed for mounting to a compact aluminium rail as a valve battery for mounting in control cabinets or as a valve manifold near the pneumatic components to be controlled. The body is made of plastic. The coil is plastic encapsulated.
The GEMÜ 0326 directly controlled 3/2-way pilot solenoid valve is designed for mounting to a compact aluminium rail as a valve battery for mounting in control cabinets or as a valve manifold near the pneumatic components to be controlled. The body is made of plastic. The coil is plastic encapsulated.
- Modular battery mounting
- Robust design
- Coil easy to replace
- Option: integrated LED (M12 version)
- Multi-functional application possibilities due to various designs
