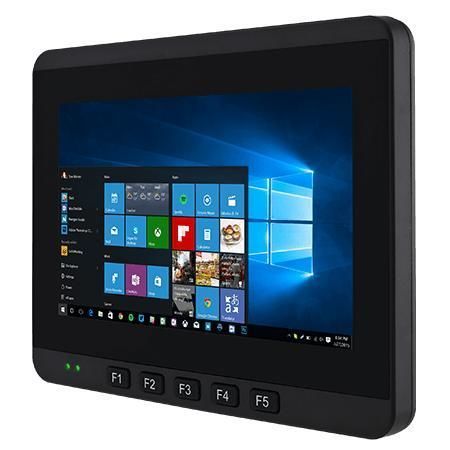

7"车载终端 FM07Intel® Pentium® N4200intel® celeron® N3350MIL-STD-810G
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 显示器尺寸
- 7"
- 处理器
- intel® celeron® N3350, Intel® Pentium® N4200
- 保护程度
- MIL-STD-810G, IP 65
- 应用
- 船队管理, 叉车, 用于航空工程
- 操作系统
- Linux, Windows 10 IoT企业版
- 屏幕类型
- 感应电容, 多触点触摸屏
- 内存
- 4 GB, 8 GB
- 数据存储
- SSD 128GB
- 可连接性
- 4G LTE, 蓝牙, WiFi, USB, 以太网, 千兆以太网, GNSS
- 其他特性
- 无风扇, 移动式, VESA75
产品介绍
概述
Winmate FM07 是一款 7 英寸车载计算机，适用于仓储物流、车队管理和叉车作业。其面向嵌入式和关键任务环境，具备宽范围车载电源支持、M12 防水连接器、IP65 防护和符合 MIL-STD-810G 的抗冲击与抗振动能力。屏幕为投影式电容多点触控，标配 Intel® Celeron® N3350，另可选 Intel® Pentium® N4200。默认操作系统为 Windows 10 IoT Enterprise（64-bit），可选 Linux Ubuntu 20.04。
主要特性
认证
产品详情 — 要点
安装方案（表格）
Mounting 1 – No Drill Solution
No. | Component | RAM Mount Part Number | Description | QTY
A | RAM Clamp Mounts - on the forklift | RAM-D-247U-4 | Clamp base with 2.25” Ball | 1
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | 1
C | RAM Ball on the device side | RAM-D-2461U | 75 x 75 mm VESA with 2.25” Ball | 1
C-1 | 螺钉 | - | SUS304 M4 x 12 mm Screw | 4
C-2 | 垫圈 | - | M4 Washer | 4
Mounting 2 – Drill Solution
No. | Component | RAM Mount Part Number | Description | QTY
A1 | RAM round base mounts - on the forklift | RAM-D-202U | 3.68" Round Base with 2.25" Ball | 1
A1-1 | 螺钉 | - | SUS304 M8 x 40 mm Screw | 4
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | 1
C | RAM Ball on the device side | RAM-D-2461U | 75 x 75 mm VESA with 2.25” Ball | 1
C-1 | 螺钉 | - | SUS304 M4 x 12 mm Screw | 4
C-2 | 垫圈 | - | M4 Washer | 4
Mounting 3 – Keyboard Mounting Installation
No. | Component | RAM Mount Part Number | Description | QTY
A | Winmate Keyboard Adapter Plate (PN: 821009131600) | - | 4 VESA holes on the plate to device and 4 AMPS holes to RAM Ball | 1
A-1 | 螺钉 | - | SUS304 M4 x 10 mm Screw | 4
A-2 | 垫圈 | - | M4 Washer | 4
B | RAM Ball on the sloped part of the keyboard adapter plate | RAM-D-202U | 2.5" Round Base with 1.5" Ball | 1
B-1 | 螺钉 | - | SUS304 M5 x 16 mm Screw | 4
B-2 | 垫圈 | - | M5 Washer | 4
C | RAM Ball on the bottom part of the keyboard adapter plate | RAM-D-202U | 2.5" Round Base with 1.5" Ball | 1
C-1 | 螺钉 | - | SUS304 M5 x 12 mm Screw | 4
C-2 | 垫圈 | - | M5 Washer | 4
D | RAM Arm | RAM-D-201U | Arm for 1.5" Ball (Length: 5.6") | 1
E | RAM Ball on the sloped part of the keyboard adapter plate | RAM-D-202U | 2.5” Round Base with 1.5” Ball | 1
E-1 | 螺钉 | - | SUS304 M5 x 12 mm Screw | 4
E-2 | 垫圈 | - | M5 Washer | 4
F | Keyboard | - | - | 1
配件
标配配件
可选配件
Winmate FM07 是一款 7 英寸车载计算机，适用于仓储物流、车队管理和叉车作业。其面向嵌入式和关键任务环境，具备宽范围车载电源支持、M12 防水连接器、IP65 防护和符合 MIL-STD-810G 的抗冲击与抗振动能力。屏幕为投影式电容多点触控，标配 Intel® Celeron® N3350，另可选 Intel® Pentium® N4200。默认操作系统为 Windows 10 IoT Enterprise（64-bit），可选 Linux Ubuntu 20.04。
主要特性
- Intel® Celeron® N3350（Apollo Lake）标配；Intel® Pentium® N4200 可选
- 7.0" 1024 x 600 投影式电容多点触控显示，面板亮度 1000 nits
- 车载宽电源输入 9–36 V DC，支持点火控制
- M12 防水连接器及 M12 千兆以太网
- IP65 防尘防水
- 符合 MIL-STD-810G 的冲击与振动耐受性
- 无线：WLAN、Bluetooth、GNSS（GPS/GLONASS）；可选 WWAN（4G/LTE）
- 前置可编程功能键 5 个
认证
- MIL-STD-810G
- IP65
- E‑Mark
- FCC
- CE
产品详情 — 要点
- 显示：7.0" 投影式电容多点触控，1024 x 600，1000 nits，800:1 对比度，活动区域 152.2144 x 85.92 mm
- 系统：Intel Celeron N3350 1.1 GHz（最高 2.4 GHz）标配；Intel Pentium N4200 可选；标配 4 GB（可选 8 GB）；1 x M.2 2242 SSD 128 GB
- 以太网：1 x 千兆以太网（M12）
- 安全：TPM 2.0
- 操作系统：Windows 10 IoT Enterprise（64-bit）标配；Linux Ubuntu 20.04 可选
- 车载电源：内置宽范围转换器（9–36 V DC）并支持点火控制；最大功耗 35 W
- 接口：2 x USB（经 DB9 于扩展座），1 x RS232/422/485（默认 RS232），1 x 千兆 LAN（M12），扬声器，SIM 卡槽，DIDO（5 DI / 3 DO），2 x CANBUS
- 机械：尺寸 190 x 146 x 40 mm；重量 1.25 kg；支持 RAM 安装与 VESA 75 x 75 mm；无风扇设计
- 环境：工作湿度 10%–95% RH；工作温度 -20 °C 至 60 °C；符合 MIL-STD-810G 冲击与振动要求
安装方案（表格）
Mounting 1 – No Drill Solution
No. | Component | RAM Mount Part Number | Description | QTY
A | RAM Clamp Mounts - on the forklift | RAM-D-247U-4 | Clamp base with 2.25” Ball | 1
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | 1
C | RAM Ball on the device side | RAM-D-2461U | 75 x 75 mm VESA with 2.25” Ball | 1
C-1 | 螺钉 | - | SUS304 M4 x 12 mm Screw | 4
C-2 | 垫圈 | - | M4 Washer | 4
Mounting 2 – Drill Solution
No. | Component | RAM Mount Part Number | Description | QTY
A1 | RAM round base mounts - on the forklift | RAM-D-202U | 3.68" Round Base with 2.25" Ball | 1
A1-1 | 螺钉 | - | SUS304 M8 x 40 mm Screw | 4
B | RAM Arm | RAM-D-201U | Arm for 2.25” Ball (L: 8.375”) | 1
C | RAM Ball on the device side | RAM-D-2461U | 75 x 75 mm VESA with 2.25” Ball | 1
C-1 | 螺钉 | - | SUS304 M4 x 12 mm Screw | 4
C-2 | 垫圈 | - | M4 Washer | 4
Mounting 3 – Keyboard Mounting Installation
No. | Component | RAM Mount Part Number | Description | QTY
A | Winmate Keyboard Adapter Plate (PN: 821009131600) | - | 4 VESA holes on the plate to device and 4 AMPS holes to RAM Ball | 1
A-1 | 螺钉 | - | SUS304 M4 x 10 mm Screw | 4
A-2 | 垫圈 | - | M4 Washer | 4
B | RAM Ball on the sloped part of the keyboard adapter plate | RAM-D-202U | 2.5" Round Base with 1.5" Ball | 1
B-1 | 螺钉 | - | SUS304 M5 x 16 mm Screw | 4
B-2 | 垫圈 | - | M5 Washer | 4
C | RAM Ball on the bottom part of the keyboard adapter plate | RAM-D-202U | 2.5" Round Base with 1.5" Ball | 1
C-1 | 螺钉 | - | SUS304 M5 x 12 mm Screw | 4
C-2 | 垫圈 | - | M5 Washer | 4
D | RAM Arm | RAM-D-201U | Arm for 1.5" Ball (Length: 5.6") | 1
E | RAM Ball on the sloped part of the keyboard adapter plate | RAM-D-202U | 2.5” Round Base with 1.5” Ball | 1
E-1 | 螺钉 | - | SUS304 M5 x 12 mm Screw | 4
E-2 | 垫圈 | - | M5 Washer | 4
F | Keyboard | - | - | 1
配件
标配配件
- M12 Power Cable (PC-FM07) — 1.8 m
- Adapter (EA10681G) — 1.8 m, 100–240 V AC to 12 V 50 W DC
- M12 LAN Cable (LN-FM07) — 1.8 m
- USB cable (USC) — 0.3 m
- Power Converter Cable (PCC-FM)
- WLAN/BT 天线 (WFA-FM07)
- RS232 Cable (RSC) — 1.8 m
- CANBUS & DIDO Cable (CD-FM07) — 1.8 m
可选配件
- WWAN Antenna (WWA-FOM07)
- GPS Antenna (GSA-FM) — 3 m
- Audio Cable (AC-FM)
