工业换流器 PFM™

用于远程通信

Produit

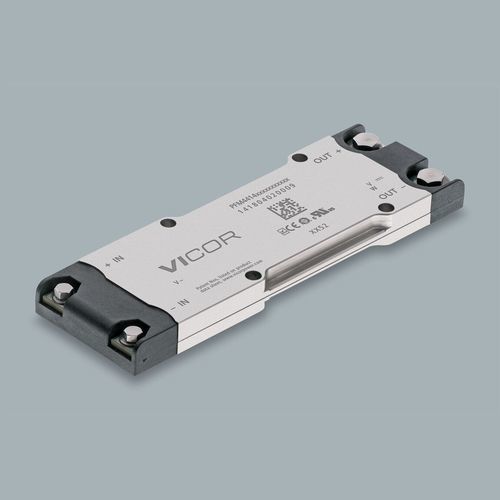

PFM4414VB6M48D0CA0 — PFM™ Isolated AC-DC Converter with PFC

Aperçu
Isolated AC‑DC converter in the PFM™ family providing active PFC, compact VIA 4414 package and up to 400 W output power. Requires only a few external components for a wall‑plug‑to‑POL solution (rectifier, fuse, MOV, hold‑up capacitors).

Principales caractéristiques
Input Voltages: 85V - 264V
Output Voltage: 48V
Output Power: 400 W
Package: 4414 VIA package, 4.35 x 1.4 x 0.37 in / 110.55 x 35.54 x 9.3 mm

Fonctionnalités

• Small size, low profile
• Ruggedized autoranger
• Double sided thermal housing
• Easy-to-use solution requires only a few external components (rectifier, fuse, MOV, hold-up caps)
• Integrated filtering, transient protection, inrush protection
• Active Power Factor Correction (PFC) exceeding 0.95 at most line/load conditions (filter dependent)
• 400 W available over entire input voltage range
• Chassis mount or PCB mount packaging options
• Designed for simple wall-plug-to-POL designs with Vicor POL buck and buck-boost regulator products

Options et informations de commande
Mounting style options: Board Mount Long Pin; Chassis Mount; Board Mount Short Pin
Product Grades: C = –20 to 100°C; T = –40 to 100°C
Control Interface: Always On
Lead time (as shown): 40 weeks
Minimum order quantity: 1

Prix (MSRP)
Quantity / MSRP (USD):
1+ / $1,032.78
10+ / $820.54
25+ / $748.77
100+ / $702.29

Documents et certifications (extraits)
Data sheet and product safety approvals are available for the PFM family (datasheet, cURus, TUV/EN/UL 62368-1, CE Mark, CB certificate). Mechanical outlines and STEP/DXF drawings are provided for VIA 4414 package variants and heatsink options.

Caractéristiques / spécifications techniques

• Part number (example shown on page): PFM4414VB6M48D0CA0
• Product family: PFM™ (PFM Isolated AC‑DC Converter with PFC)
• Input voltage range: 85 V – 264 V AC
• Output voltage: 48 V
• Output power: 400 W available across full input range
• Active PFC: > 0.95 at most line/load conditions (filter dependent)
• Package: 4414 VIA (dimensions: 4.35 x 1.4 x 0.37 in / 110.55 x 35.54 x 9.3 mm)
• Mounting options: Board mount (long or short pin) and chassis mount (lug)
• Thermal: double sided thermal housing; heat sink options available (multiple fin heights and orientations)
• External components typically required: rectifier, fuse, MOV, hold-up capacitors
• Product grade temperature options: C (–20 to 100°C), T (–40 to 100°C)
• Control interface: Always On (option)
• Typical lead time shown: 40 weeks; minimum order quantity: 1
• MSRP pricing tiers shown in USD (see above)
