- Shanghai Zhichuan Electronic Tech Co., Ltd

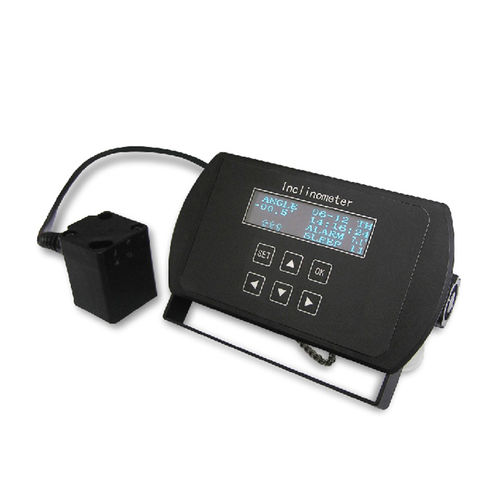

单轴测斜仪 ZCT-CX05-RC01数字MEMS数字显示
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 轴数量
- 单轴
- 输出
- 数字
- 所用技术
- MEMS
- 其他特性
- 数字显示, IP67, 用于建筑
- 解析度
0.1 °
产品介绍
ZCT-CX05-RC02 inclinometer system is designed and produced by ZC Tech. It is with measuring range of +-20°, and made of sensor and display. It is with zero set, alarm angle set function, and the built-in clock chip realize the system log function which can be set and read by the connection PC and USB interface.It can be used as safety monitoring record for construction machines.
Technical Specification:
Product Model ：ZCT-CX05-RC02
Measuring Range ： - ±20 °
Output ： - RS485
Power： - Voltage(8～36V)
Measuring Axis ： - 1 Axis
Accuracy ： ±0.2
Resolution ： 0.1°
Application ： - construction machines
IP Degree ： - IP67
