固定式测斜仪 ZCT-CX300双轴RS-485MODBUS
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 轴数量
- 双轴
- 输出
- RS-485, MODBUS
- 所用技术
- MEMS
- 其他特性
- 高精度, 固定式, IP68, 土工学
- 倾斜度
最少: -30 °
最多: 30 °
- 解析度
0.001 °
产品介绍

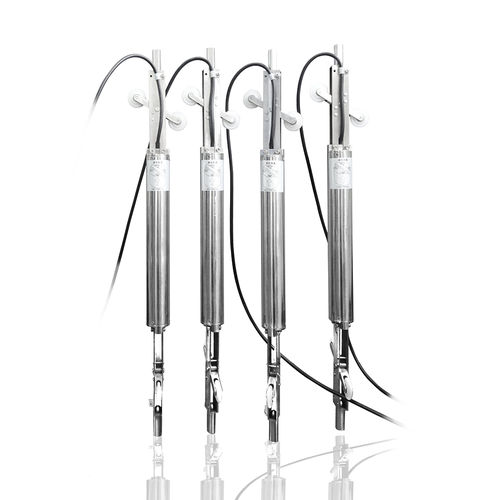

ZCT-CX300-S230 in-place inclinometer is a high- precision tilt sensing system developed by Shanghai Zhichuan(zc sensor). The product has a maximum measuring range of ± 30 degrees and supports the MODBUS RTU protocol. It is the best choice for geotechnical and structural monitoring.
The sensor probe ZCT-CX300-TubeUnit of it has a maximum measuring range of ± 30 degrees. It is suitable for geological monitoring, construction, civil engineering, and other similar safety monitoring application.
Product Features
Modbus RTU protocol compliant
Wide range, high accuracy, stable performance Solid, durable, maintenance-friendly
Product Model ： - ZCT-CX300
Measuring Range ： - ±15 ° ( ±30 °)
Output ： - RS485
Power： - Voltage(8～30V)
Repeatability： - ±0.003°
Accuracy ： - 0.001°-0.005°
Application ： - Geo/Structural Monitoring
IP Degree ： - IP68
