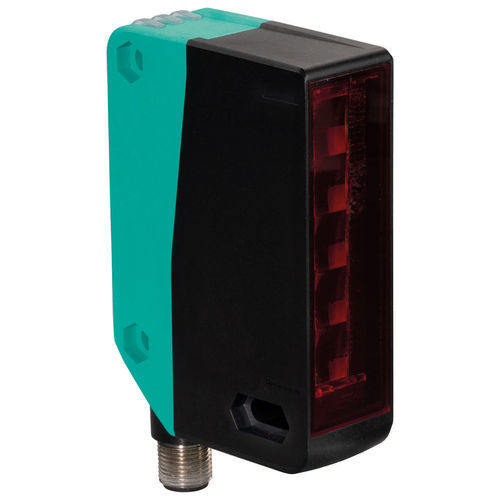

回归反射光电探测器 OGR4000-R305-2EP-IO-V1

矩形红光LED

Key Advantages:Area-detecting retroreflective photoelectric sensor with 5 beams, housed in a standard photoelectric sensor enclosureBright, clear emitter beam for easy sensor alignmentReliable detection of all surfaces regardless of object textureReliable small part detection for very flat, irregularly shaped objectsConsistent detection of objects at 2 mm throughout the entire detection areaProduct Details:Area-detecting retroreflective photoelectric sensor, red light, maximum detection range of 4 m, light field height 60 mm, IO-Link interface, 2 push-pull outputs, M12 connector.General Specifications:Effective detection distanceStandard mode: 0 ... 4 mHigh resolution: 0 ... 2 mReflector distance0.2 ... 4 m (H85-2 reflector)Detection range limit4 mSensing rangeSee tableReference targetH85-2 reflectorLight sourceLEDLight typeModulated visible red lightLED hazard markingExempt groupArea height60 mmField width12 mmObject sizeMin. 2 mm, 3 mm, 5 mm, 8 mm, 10 mm; position-independent detection within the detection rangeNumber of beams5Divergence angle+/- 2°Ambient light limitEN 60947-5-2ResolutionSee tableFunctional Safety Parameters:MTTFd674 yearsMission time (TM)20 yearsDiagnostic coverage (DC)0%Indicators/Operation:Operation indicatorGreen LED:Steady on - poweredBlinking (4Hz) - short circuitBlinking with short intervals (1 Hz) - IO-Link modeFunction indicatorYellow LED:On: light path clearOff: object detectedBlinking (8 Hz): compensation endedControl elementsTeach-in button5-position rotary switch for mode selectionElectrical Specifications:Operating voltage10 ... 30 V DCIO-Link mode: 18 ... 30 V DCRippleMax. 10%No-load current< 35 mA at 24 V supplyProtection classIIIInterface:Interface typeIO-LinkIO-Link revision1.1Device profileIdentification & Diagnostics (I&D)Smart Sensor Profile (SSP) 2.1Process dataInput 8 Bit (1 Bit switching signal, 1 Bit stability alarm, 6 Bit measured value)Output 2 Bit (1 Bit sensor control, 1 Bit evaluation control)Vendor ID1 (0x0001)Device ID0x101001 (1052673)Transmission rateCOM 2 (38.4 kb/s)Min. cycle time2.3 msSIO mode supportYesCompatible master port typesClass A, Class B (with 3-pin adapter or 3-wire cable)Output:Switching typeConfigurable. Default:C/Q - Pin 4: NPN NO/dark-on, PNP NC/light-on, IO-Link/Q - Pin 2: NPN NC/light-on, PNP NO/dark-onSignal output2 push-pull (4-in-1) outputs, short-circuit, reverse polarity, and overvoltage protectionSwitching voltageMax. 30 V DCSwitching currentMax. 100 mAVoltage drop≤ 1.5 V DCSwitching frequencyStandard mode: 500 Hz, High resolution: 250 HzResponse timeStandard mode: 1 ms, High resolution: 2 msCompliance:Communication interfaceIEC 61131-9 / IO-Link V1.1.4Product standardEN 60947-5-2Certifications:UL certificationE87056, cULus listed, class 2 power supply, type rating 1CCC certificationNot required for rated voltage ≤ 36 VEnvironmental Conditions:Ambient temperature-40 ... 60 °C (-40 ... 140 °F)Min. -30 °C during teach-inPost-teach-in temp. variation: ±20 KStorage temperature-40 ... 70 °C (-40 ... 158 °F)Mechanical Specifications:Protection ratingIP67Connection4-pin, M12 x 1 connector, rotatable 90°Housing materialPC (polycarbonate)Optical facePlastic plateWeight94 gDimensionsHeight: 89 mmWidth: 25.8 mmDepth: 59.5 mmTechnical Features / Specifications:Detection range: up to 4 m (standard), up to 2 m (high resolution)Light field height: 60 mm5 beams for area detectionIO-Link interface (version 1.1)2 push-pull outputsM12 connector, 4-pin, rotatableProtection class: IP67Operating voltage: 10-30 V DC (18-30 V DC in IO-Link mode)Operating temperature: -40 to 60 °CHousing: Polycarbonate (PC)Weight: 94 g
