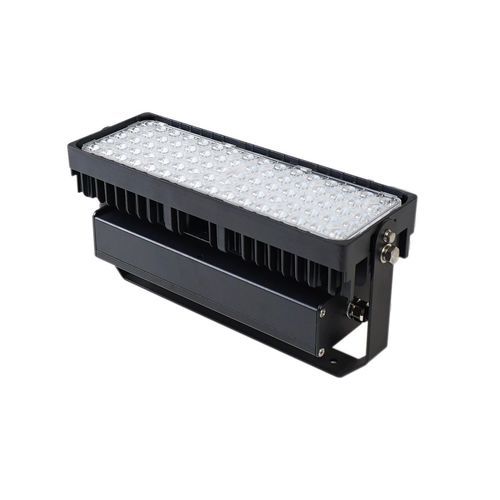

LED投光灯 JNFLM12-100S-6500-A7-DIM

HID高压纳气IP65

产品概述
100W 模块化 LED 投光灯，1×2 模块配置。采用 Philips Lumileds (Luxeon TX) LED 和 Meanwell 驱动器。可调光，IP65 防护，适用于替换 150–175W 金卤灯/HID/HPS 的工业与户外场景。

亮点 / 规格要点
模块化 1x2 LED 投光灯，额定功率 100W（系统功率 106 W）。支持调光，适配 100–277V 输入。矩形宽广光束 50×140°，适合区域与通道照明。压铸铝外壳，IP65 与 IK08。显指 CRI >80，色温 6000 K（冷白）。预计寿命 50,000 小时。保修 5 年。

产品规格（表）
Product SKU: JNFLM12-100S-6500-A7-DIM
Power Consumption: 100 W
Input Voltage: 100-277V
Beam Angle (°): 50x140°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 13000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 106 W
Number of LED Modules: 1 modules
Beam Angle Square: 50x140°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 6 kg
LED Driver Brand: Meanwell driver(s)
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

包装与运输（表）
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 6 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

技术参数

• SKU: JNFLM12-100S-6500-A7-DIM
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver: Meanwell driver(s)
• Total Lumens: 13,000 lm
• Colour Temperature: 6000 K（冷白光）
• CRI: >80
• Beam Angle: 50×140°
• IK Rating: IK08
• IP Rating: IP65
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting: Adjustable bracket mount
• Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
• Product Weight: 6 kg
• Operating Temp: -20°C to 45°C
• Humidity Range: 10%–90% RH
• Rated Lifespan: 50,000 hours
• Warranty: 5 years
