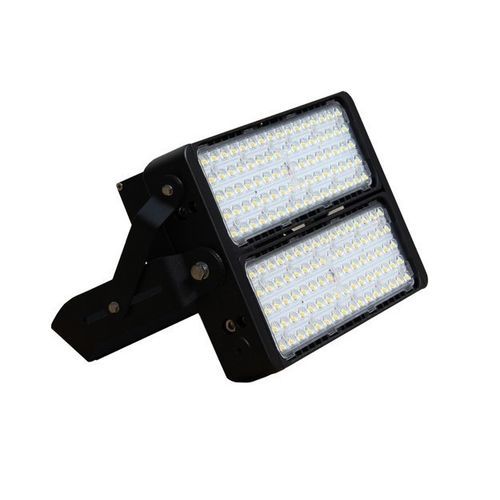

LED投光灯 JNFLM14-200S-6500-A5-DIM

HID高压纳气IP65

简短描述
200W 模块化 LED 投光灯，1×3 模块配置，配备 Philips Lumileds (Luxeon TX) LED 和 Meanwell 驱动。可调光，IP65 与 IK08 级别，设计用于在室外工业应用中替代 400W 金卤灯/HID/HPS 灯具。

特性
模块化结构，便于灵活的光学配置与维护。精确的 30x100° 光束，适用于立面及线性区域照明。集成 Meanwell 驱动与 Philips Lumileds (Luxeon TX) LED，总光通量 26000 lm。压铸铝外壳，带可调支架，适合可靠的室外安装。可调光以便能耗管理和光学调整。

产品规格
Product SKU : JNFLM14-200S-6500-A5-DIM
Power Consumption : 200 W
Input Voltage : 100-277V
Beam Angle (°) : 30x100°
IP Rating : IP65
Color Rendering Index : >80
LED Type : Philips Lumileds (Luxeon TX)
Total Lumens Output : 26000 lm
Color Temperature (K) : 6000 K
IK Impact Rating : IK08
Dimming Capability : Dimmable
Housing Colour : Black
Power Factor : >0.95
Input Frequency : 50/60 Hz
Housing Material : Die-cast Aluminum
Warranty Period (Years) : 5
System Power : 206 W
Number of LED Modules : 1 modules
Beam Angle Square : 30x100°
Environmental Temperature Range : -20°C ~ 45°C
Mounting Type : Adjustable Bracket Mount
Fixture Height (mm) : 113 mm
Fixture Length (mm) : 326 mm
Fixture Width (mm) : 128 mm
Product Weight : 8.2 kg
LED Driver Brand : Meanwell driver(s)
Working Temperature Range : -20°C ~ 45°C
Working Humidity Range : 10%-90% RH
Lifespan (Hours) : 50,000 hours

技术规格

• SKU: JNFLM14-200S-6500-A5-DIM
• Power Consumption: 200 W
• System Power: 206 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Lumens: 26000 lm
• Color Temperature: 6000 K (冷白)
• CRI: >80
• Beam Angle: 30x100°
• IK Rating: IK08
• IP Rating: IP65
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting: Adjustable Bracket Mount
• Fixture Dimensions (L×W×H): 326×128×113 mm
• Product Weight: 8.2 kg
• Operating Temperature Range: -20°C to 45°C
• Working Humidity: 10%-90% RH
• Power Factor: >0.95
• Warranty: 5 years
• Lifespan: 50,000 hours
