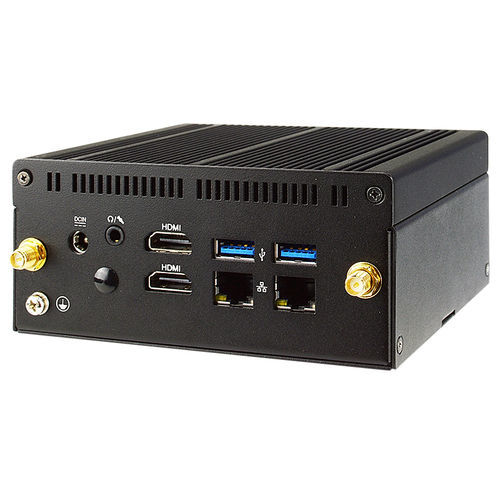

嵌入式电脑 HBFBU691-3455-B Series准系统Intel® Celeron® J3455Intel® Apollo Lake
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 类型
- 嵌入式, 准系统
- 处理器
- Intel® Celeron® J3455, Intel® Apollo Lake
- 接口
- HDMI, VGA, DDR3L SODIMM, USB 3.0, RS-232, 千兆以太网, RS-485, RS-422
- 应用领域
- 工业, 自动化, 用于数字标牌, 物联网应用
- 其他特性
- 无风扇, Windows 10, Linux
产品介绍
- Intel® Apollo Lake J3455 SoC Processor, quad core
- 2* Realtek RTL8111H GbE
- Up to 2* 4K HD Displays
Graphics - Intel® HD Graphic, Triple displays support, 1* VGA, 2* HDMI
Audio - Realtek ALC662VD HD Audio
LAN - 2* Realtek RTL8111H GbE
Dimensions - 125(W) x 109.2 (D) x 55.5 (H) mm
Storage - 1* mSATA (full size) Device
1 * 2.5” SATA drive bay for HDD or SSD
Front I/O Port - 1* VGA, 2* USB 3.0, 1* RS232/422/485, 1* Power Button
Rear I/O port - 2* USB 3.0, 2* HDMI, 2* GbE, 1* GND hold, 1* Line-out/MIC combo, 1* DC-in jack
Power - Adapter : AC 90~240V / DC12V / 40W
Market Segments Supported
√ Digital Signage
√ Cloud Applications
√ IoT
√ Industrial Automation
Environment
Operating Temperature : 0 ~ 50° C with air flow (mSATA)
Storage Temperature : -40 ~ 85° C
Humidity : 10% ~ 95% RH @40°C (non-condensing)
Compliance - CE, FCC, RoHS, ErP
