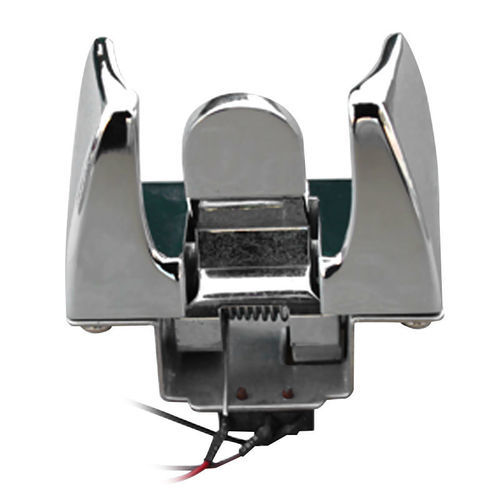

电话吊钩 H2

不锈钢不锈钢

Product
Model: H2
Size:
Material: Stainless steel

Product Introduction
The hook adopts high-quality materials, the surface copper, nickel, chrome plated, can be a good anti-corrosion, anti external damage, to ensure its excellent performance. Our Hook is suitable for outdoor public telephones.

Standard
GB/15279-94 Automatic telephone technology conditions
YDN109-1998 (chapter 4) IC card telephone technical requirements and test methods

Conditions of using
Service Environment: -25~55℃
Relative humidity: 10%~95%
Atmospheric pressure: 96~108KPa

Main structure parts

• 600 # hanging for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
• Hang tongue for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
• Selects the high quality of universal switch, on resistance: 0.1, cable length L: 150

Insulation resistance
In the switch between lead wires and metal shell, with TH2681A insulation resistance tester tests (DC 250 V, insulation resistance: 50M)

Withstand voltage
In the switch between lead wires and metal shell, with ET2670A hipot tester tests, shall meet the following requirements: (AC1600V/50Hz/1min, Leakage current: 0.5mA). And there is no flashover or breakdown phenomenon.

Caractéristiques / spécifications techniques

• Modèle: H2
• Matériau: Stainless steel
• Traitement de surface: copper, nickel, chrome plating
• Switch on-resistance: 0.1
• Cable length L: 150
• Plage de température de service: -25~55℃
• Humidité relative: 10%~95%
• Pression atmosphérique: 96~108KPa
