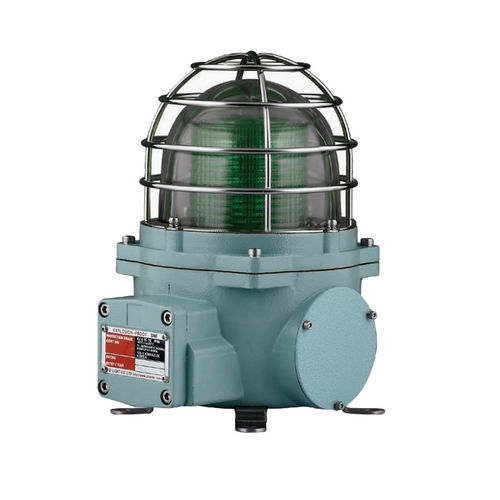

长明报警灯 SNEL氙气LED式白炽
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 类型
- 长明
- 所用技术
- LED式, 氙气, 白炽
- 电压
- 24Vdc, 12Vdc, 110Vac, 220Vac
- 保护程度
- IP66, 防爆燃, ATEX, IECEx
- 其他特性
- 紧凑型
产品介绍
Product Details
Model: SNEL
Size:
Material:
Features
Caractéristiques / Spécifications techniques
Model: SNEL
Size:
Material:
Features
- Light weight and compact explosion proof warning lights with a variety of light source selections from bulb, LED, and xenon lamp
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Housing standard color: MUNSELL No. 7.5BG 7/2
- Cable entry: 1/2'' NPT
- Materials: Lens-Tempered glass, Inner lens-PC, Housing-Al, Protection cage-STS 316L, Reflector for LED type-PC/ Reflector for bulb type-Heat resistant ABS
- Certificates: IECEx, ATEX, NEPSI, KCs, CCS, CCC(F), TIIS, CCC
- Protection rating:
- IECEX - Ex db IIC T6 Gb, Ex db op is IIC T6 Gb
- ATEX - II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb
- KCs - Ex d IIC T6
- NEPSI, CCC - Ex d IIC T6 Gb
- TIIS - IIC T6 Gb (SNEL DC12/24V, AC110V only)
- Ambient operating temperature: -40°C ≤ Tamb ≤ +60°C
- -40°C ≤ Tamb ≤ +55°C (KCs)
- -20°C ≤ Tamb ≤ +55°C (TIIS, SNEL only)
Caractéristiques / Spécifications techniques
- Model: SNEL
- Light source options: Bulb, LED, Xenon lamp
- Housing: Aluminum
- Protection rating: IP66
- Certificates: IECEx, ATEX, NEPSI, KCs, CCS, CCC(F), TIIS, CCC
- Operating temperature: -40°C to +60°C (varies by certification)
- Materials: Tempered glass, Polycarbonate (PC), Aluminum, Stainless Steel 316L, Heat resistant ABS
- Cable entry: 1/2'' NPT
- Standard color: MUNSELL No. 7.5BG 7/2
