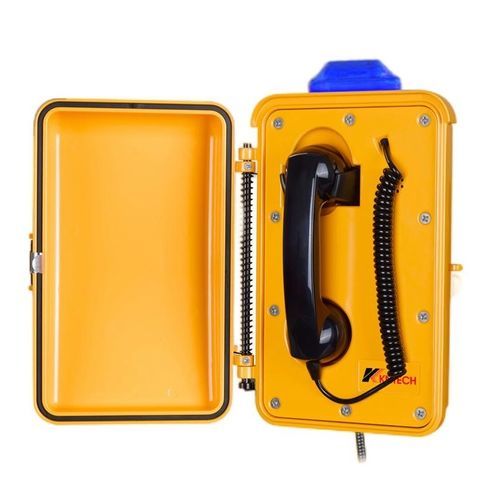

模拟工业电话机 KNSP-03-D23

IPPoELAN

Product Overview
Model: KNSP-03-D23
Size: 320*205*120mm
Material: Aluminum alloy
Industrial-grade blue light station designed for outdoor and industrial work areas. Waterproof, moisture-proof, corrosion-resistant, vandal- and tamper-resistant, supports line-powered blue indication lamp and is suitable for tunnels, metro, railway, LRT, speedway, marine, offshore, mines, power plants, bridges and similar environments.

Features

• Robust aluminium alloy die-cast body, vandal & tamper-resistant hardware.
• Waterproof rating IP66 dust proof.
• With line powered blue indication lamp.
• Noise canceling microphone; filters out train/car noise for clearer calls. Without keypad, supports hotline setting and scroll dialing.
• Magnetic reed hook-switch.
• DC input overvoltage/overcurrent protection and RJ45 surge protection.
• Heavy duty handset with hearing aid compatible (HAC) receiver.
• Handset with industrial strong curly cord.
• Door cover: orient automatically and good self-closing, convenient for use.
• Operating temperature range: -40°C to +70°C.
• Supports echo cancellation.
• Supports remote software upgrade, configuration and monitoring.
• Powder coated in UV stabilized polyester finish.
• Application examples: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Order information
Model number | Power Supply | Item Number
KNSP-03-IP-Y_AD | DC12V 1A | SP0030052
KNSP-03-IP-Y_P | POE | SP0030022
KNSP-03-IP-Y_ADP | DC12V 1A + POE | SP0030092

Certifications
Australian communications: AS/CA S004
Australian equipment safety: AS/NZS 60950.1:2015
RCM: AS/NZS CISPR 32
EMC: EN55032, EN55024, EN61000-3-2

Installation
Unit size: 320*205*120mm. Mounting and installation guidance provided in product documentation and size drawing.

Packaging
Unit size: 320*205*120mm; Unit N.W.: 4.86 KG
1 pcs packing box size: 439*277*191mm; Unit N.W.: 5.8 KG
6 pcs in 1 outer carton box: size: 730*390*340mm; N.W.: 36.5 KG

Caractéristiques / spécifications techniques

• VoIP SIP 2.0 telephone.
• DTMF dialing supported.
• Audio codecs: G.711, G.723, G.726, G.729.
• MTBF: 100000 hours; MTTR: 2 hours.
• Network: 10/100 BaseTX Ethernet, RJ45.
• Free dial (maximum length of each number: 32 digits).
• Full duplex 2-way communication.
• IP protocols: IPv4, TCP, UDP, RTP, DHCP, SIP.
• Call control signaling: SIP; SIP Info (DTMF), RFC 2833 (DTMF).
• 1 x LAN Power over Ethernet (PoE, IEEE 802.3af).
• Local power: 12 V DC; Idle 2 W, Max 10 W.
• Power over Ethernet: IEEE 802.3af, Class 0.
• Network control/support: IEEE 802.1x, STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004).
• Auxiliary contacts: optional.
• Programming and configuration through Web GUI; non-volatile flash memory.
• 1 Aux output, dry contact (rated load: 0.3 A at 125 VAC; 1 A at 30 VDC; rated carry current: 1 A).
• Remote automatic software upgrade and centralized monitoring.
• Max switching voltage: 125 VAC, 30 VDC; Max switching current: 1 A.
• Echo cancellation: ITU-T G.167/G.168.
