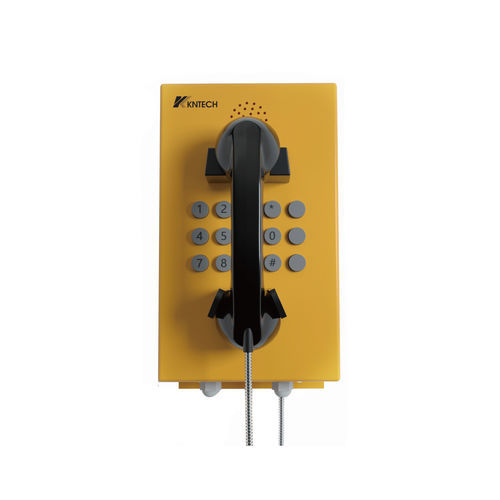

模拟工业电话机 KNSZ-11

VoIPIP66隧道

Product
Waterproof Tunnel Telephone

Model
KNSZ-11

Key Functional Features & Benefits

• Cold-roll steel sheet enclosure with vandal & tamper-resistant hardware for easy installation.
• Waterproof and dust proof with IP66 ingress protection.
• Full keypad with memory; 3-button programmable telephone supporting hotline dialing.
• Heavy duty handset with hearing aid compatible receiver and noise cancelling microphone.
• Handset fitted with industrial strong armored cord.
• Silicon keypad keeps keypad waterproof and dust proof.
• Service temperature range: -40°C to +75°C.
• Magnetic reed hook-switch; telephone line powered.
• Lightning protection to ITU-T recommendation K.21.
• Phone integrity wiring to enable the telephone system to check if the telephone unit is still operational (requires PABX support).
• Optional 7-minute timeout to release the line if handset left off-hook (available upon buyer's requirement).
• Typical applications: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Installation
Installation diagrams and mounting dimensions are provided in the product documentation and detailed pictures.

Dimensions
Size: 250*165*142.6 (mm). Detailed dimensional drawings available in specifications.

Certification

• EN55022 (emissions) and EN55024 (immunity)
• Ingress Protection: GB4208-93 IP66
• FCC
• ITU-T Recommendations K.21
• EMC: EN50121 (Railway application - Electromagnetic Compatibility)

Analogue Specification

• PSTN analogue telephone.
• DTMF dialing.
• MTBF: 100000 hours.
• MTTR: 2 hours.
• Connection: RJ11 screw terminal pair cable (or RJ11 socket/plug upon request).
• Applicable for various SPC exchange, PABX and dispatching exchange systems with feeding voltage of 33-60V.
• Ambient temperature: -30 ~ +60°C. Relative humidity: 10% ~ 95%. Atmospheric pressure: 86 ~ 106 Kpa. Circumstance noise: less than 60 dB(A).
• Sound level of ringing: over 70 dB(A).
• Standard DTMF frequencies: low group 697, 770, 852, 941 Hz; high group 1209, 1336, 1477 Hz; frequency deviation -1.5% ~ +1.5%.
• Call transmission index (5KM): SLR < 12, RLR < -1, STMR > 10. Output impedance 600 Ohm. Maximum distance: 7 KM.
• Memory dialing: up to 12 groups of numbers stored, max length 16 digits each.

VoIP Specification
VoIP version available with specific VoIP features and parameters; refer to product VoIP specification documentation for full details.

Detailed Pictures
Detailed product and installation pictures are provided showing enclosure, handset, keypad and mounting.

Caractéristiques / spécifications techniques

• Modèle: KNSZ-11
• Matériel: Cold-roll steel sheet
• Taille: 250 × 165 × 142.6 mm
• Indice de protection: IP66
• Clavier: silicone, étanche et anti-poussière; plein clavier avec mémoire
• Composants audio: écouteur compatible aides auditives; microphone à suppression de bruit
• Cordon: cordon blindé industriel résistant
• Température de service: -40°C à +75°C
• Commutation: magnetic reed hook-switch
• Alimentation: ligne téléphonique (pour version analogue)
• Protection foudre: conforme ITU-T K.21
• MTBF/MTTR: 100000 hours / 2 hours
• Connexions: RJ11 screw terminal pair cable (ou RJ11 socket/plug sur demande)
• Applications: tunnels, métro, chemins de fer, routes à grande vitesse, navires, offshore, mines, centrales électriques, ponts, etc.
