支架安装式扬声器 KNSIPLB-Ex15

危险区域防水耐恶劣天气

Produit

• Modèle: KNSIPLB-Ex15
• Taille: 413 x 254 x 277 mm
• Matériau: Anti-static Polyamide (noir)

Présentation

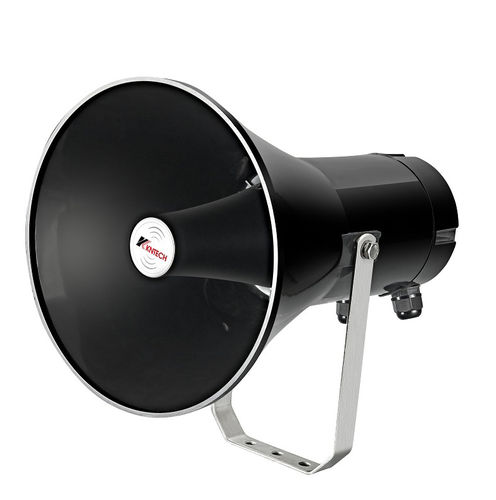

The KNSIPLB-Ex15 Network Speaker is a simple-to-install explosion-proof loudspeaker that provides clear, long-range speech for remote speaking in video surveillance applications. It enables an operator to remotely address people and deter unwanted activity, and can play pre-recorded audio files when manually or automatically triggered by an alarm event. The unit integrates with VoIP telephone systems using SIP and supports Power over Ethernet (PoE). It has a built-in amplifier and delivers a high sound pressure exceeding 92 dB while maintaining low power consumption. The speaker is a standalone unit designed for flexible, scalable and cost-effective deployments. The speaker comes with pre-recorded audio files and allows user-uploaded audio.

Caractéristiques / Points forts

• Explosion-proof speaker design, certified by ATEX standard.
• Material/Colour: Anti-static Polyamide / Black.
• Waterproof and dustproof rating: IP66.
• Operating temperature range: -40 °C to +55 °C.
• 360° lossless broadcast capability.
• IP network horn speaker — explosion proof and waterproof.
• Designed for public address and paging applications.
• Applications: petroleum, metallurgy, chemical industry, sea oil, nuclear power, shipbuilding, tunnels and other projects requiring explosion-proof grade speakers.

Type / Description
The appearance of the speakers' mold is the same; the difference is whether a built-in transformer is included or not.

Product Packing

• Unit size (packing): 250 (∅) x 352 (L) mm
• Unit Gross Weight: 3.7 kg
• 1 pcs in an inside box. Box size: 270 x 270 x 390 mm. G.W.: 3.7 kg
• 2 pcs in a CTN box. CTN box size: 570 x 290 x 420 mm. G.W.: 7.8 kg

Applications & Utilisation
Used for remote announcements and deterrence in live video monitoring and surveillance; suitable for hazardous area public address and paging in oil & gas, chemical, metallurgy, shipbuilding, tunnels, nuclear and other explosion-risk environments.

Caractéristiques / spécifications techniques

• Model: KNSIPLB-Ex15
• Product size: 413 x 254 x 277 mm
• Material: Anti-static Polyamide
• Colour: Black
• IP rating: IP66 (waterproof and dustproof)
• Operating temperature: -40 °C to +55 °C
• Sound pressure level: exceeding 92 dB
• Connectivity: IP network (SIP), integrates with VoIP systems
• Power: Supports Power over Ethernet (PoE)
• Amplifier: Built-in amplifier
• Audio: Pre-recorded audio files included; supports user-uploaded audio
• Certification: ATEX (explosion-proof marking)
• Packing details: see Product Packing section above
