位置指示器 1242电流现场总线LED式
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 计量对象
- 位置, 电流, 现场总线
- 显示
- LED式
- 其他特性
- 远距离
- 应用
- 用于阀门
产品介绍

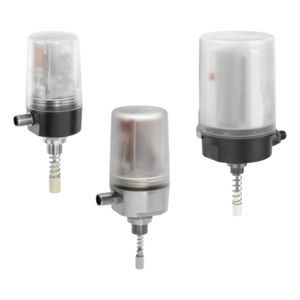

Universal position indicator with long-range LEDs
The position indicator GEMÜ 1242 is suitable for mounting on pneumatically operated actuators. The position of the valve spindle is reliably electronically detected and evaluated using play-free and non-positive mounting. Intelligent microprocessor controlled functions facilitate commissioning and support during operation. The current position of the valve is displayed via high-visibility LEDs and fed back via electrical signals. The GEMÜ 1242 has been specially designed for valves with a stroke of 2 to 75 mm.
The position indicator GEMÜ 1242 is suitable for mounting on pneumatically operated actuators. The position of the valve spindle is reliably electronically detected and evaluated using play-free and non-positive mounting. Intelligent microprocessor controlled functions facilitate commissioning and support during operation. The current position of the valve is displayed via high-visibility LEDs and fed back via electrical signals. The GEMÜ 1242 has been specially designed for valves with a stroke of 2 to 75 mm.
- Fieldbus connection AS-Interface and DeviceNet (optional)
- Communication and programming interface IO-Link
- Adjustable switch point tolerances
- Speed-AP function for fast mounting and initialization
- High visibility position indicator by LED
- On-site or remote end position programming via programming input
