位置指示器 1235电流LED式远距离
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 计量对象
- 位置, 电流
- 显示
- LED式
- 其他特性
- 远距离, IO-link
- 应用
- 用于阀门
产品介绍

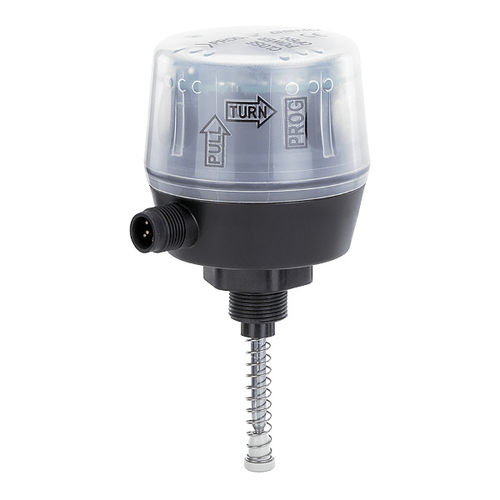

Universal position indicator with long-range LEDs
The GEMÜ 1235 electrical position indicator is suitable for installation on pneumatically operated linear actuators and, with specific mounting parts, likewise suitable for pneumatically operated quarter turn actuators as well as further selected actuator versions. The position of the valve spindle is reliably electronically detected and evaluated using play-free and non-positive mounting. Intelligent microprocessor-controlled functions facilitate commissioning and support during operation. The current position of the valve is displayed via high-visibility LEDs and fed back via electrical signals.
The GEMÜ 1235 electrical position indicator is suitable for installation on pneumatically operated linear actuators and, with specific mounting parts, likewise suitable for pneumatically operated quarter turn actuators as well as further selected actuator versions. The position of the valve spindle is reliably electronically detected and evaluated using play-free and non-positive mounting. Intelligent microprocessor-controlled functions facilitate commissioning and support during operation. The current position of the valve is displayed via high-visibility LEDs and fed back via electrical signals.
- Communication and programming interface IO-Link
- Adjustable switch point tolerances
- Speed-AP function for fast mounting and initialization
- High visibility position indicator by LED
- On-site or remote end position programming via programming input
