滚珠丝杠直线运动系统 FTH14FSK80FSK40IS-TM

紧凑型双轴高性能

Short Description

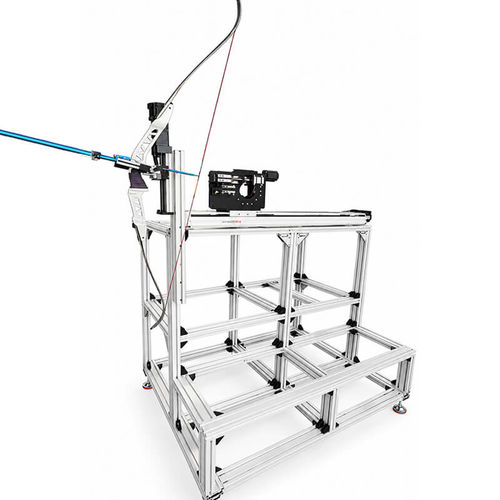

The FTH14 & FSK80 & FSK40 archery tester is upgraded to automation. With automatic stringing & release mechanisms, 100mm stroke and 10kg rated load. It supports automatic clamping, cyclic testing and data collection for unattended operation. Custom stroke options are available for different models.

Key Features

• Automatic stringing and release mechanisms
• Supports automatic clamping, cyclic testing and unattended data collection
• Models with different custom stroke lengths

Product Overview
The dual-track linear module developed by FUYU has a body width of 14 cm, runs smoothly and provides strong stability. The module offers high load capacity and low noise and is used widely in international markets. Typical automated device uses include positioning, clamping, carrying and other tasks in electronic assembly, liquid injection and filling devices, spot fusion welding devices, circuit board and wafer box positioning/insertion devices and similar automated operations.

Caractéristiques / spécifications techniques

• Series: FTH14FSK80FSK40IS-TM
• Custom stroke: FSK80 – 100 mm; FSK40 – 50 mm; FTH14 – 1300 mm
• Stroke Range: 50 mm - 1250 mm
• Module Width: 135 mm
• Repeat positioning accuracy (short description): ±0.01 mm
• Repeat Position Accuracy (module text): 0.02 mm
• Lead options: 5 / 10 / 20 mm
• Speed Range: 250 / 500 / 1000 mm/s²
• Horizontal Load Capacity: 110 / 90 / 40 kg
• Vertical Load Capacity: 30 / 25 / 10 kg
• Typical body width (dual-track module): 140 mm
