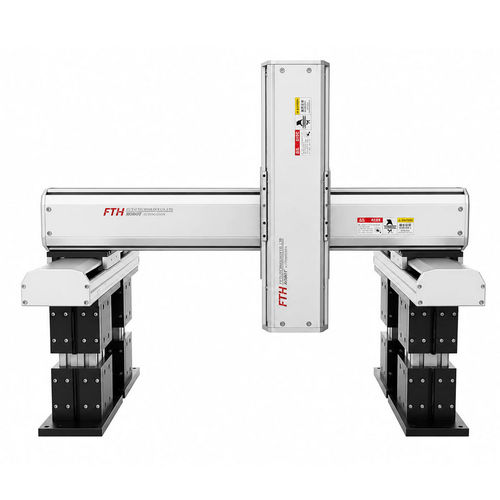

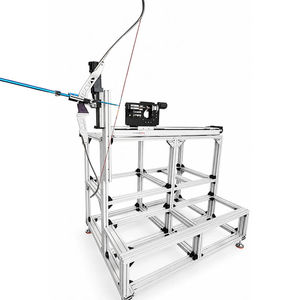

XYZ轴位移台 FTH14

线性电机驱动电动直线伺服电机

Short Description
FTH14, a core transmission unit for engraving machines, features high-precision ball screw & linear guide (+0.01mm repeat positioning accuracy) and a 300mm aluminum raised base. The semi-enclosed structure resists dust and chips, cutting maintenance by 60% for superior reliability and cost efficiency.
Custom stroke: X-axis 300 mm, Y-axis 700 mm, Z-axis 300 mm. Repeat positioning accuracy: ±0.01 mm.

Product Detail
The dual-track linear module developed by FUYU has a body width of 14cm, which runs more smoothly and has strong stability. The repeated positioning accuracy can reach ±0.02mm. The module features low noise and high load capacity. It is used in automatic devices such as positioning, clamping, carrying, electronic assembly, liquid injection and filling devices, spot fusion welding devices, circuit board and wafer box positioning insertion devices, and various object handling applications.

Series & Features

• Series: FTH14IS-H
• Model designation: FTH14 (core transmission unit)
• Stroke Range: 50mm-1250mm (customizable)
• Module Width / Body width: 135mm (listed) / 14cm (described)
• Repeat Positioning Accuracy: ±0.01 mm (short description) and typical repeated positioning accuracy ±0.02 mm (module description)
• Lead options: 5mm, 10mm, 20mm
• Speed Range: 250 mm/s, 500 mm/s, 1000 mm/s
• Horizontal Load Capacity: 110 kg / 90 kg / 40 kg (depending on configuration)
• Vertical Load Capacity: 30 kg / 25 kg / 10 kg (depending on configuration)
• Semi-enclosed structure for dust and chip resistance; reduced maintenance (~60% reduction stated)

Applications
Typical applications include engraving machines, multi-axis positioning stages, electronic assembly machines, liquid injection/filling devices, spot fusion welding devices, circuit board / wafer box positioning and insertion devices, and other automated handling and positioning equipment.

Caractéristiques / spécifications techniques

• Commercial series: FTH14IS-H
• Commercial model: FTH14 (core transmission unit)
• Custom stroke examples: X 300 mm, Y 700 mm, Z 300 mm
• Stroke range (available): 50 mm - 1250 mm
• Module / body width: 135 mm (listed) ; body width described as 14 cm
• Repeat positioning accuracy: ±0.01 mm (stated) ; module typical repeat accuracy ±0.02 mm
• Lead options: 5 / 10 / 20 mm
• Speed range: 250 / 500 / 1000 mm/s
• Horizontal load capacity (various configs): 110 kg / 90 kg / 40 kg
• Vertical load capacity (various configs): 30 kg / 25 kg / 10 kg
• Construction: semi-enclosed structure to resist dust and chips
• Base: 300 mm aluminum raised base (mentioned)
• Typical uses: positioning, clamping, carrying, assembly, injection/filling, welding, PCB/wafer handling
