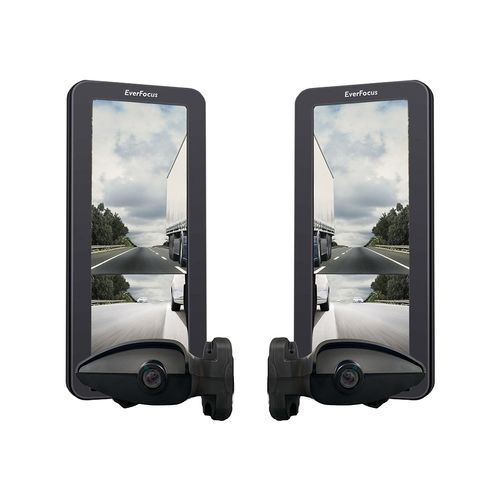

电动后视镜 EMS12D2

产品
12.3英寸盲区检测（BSD）电子后视镜，型号 EMS12D2，适用于车载摄像与驾驶辅助系统。

主要特性

• [预发布]
• 背光亮度自动调节
• 12.3英寸 TFT-LCD，支持2分屏显示
• 支持星光级夜视
• 支持WDR强光抑制
• DVR 图像存储（SD 卡）
• 支持 BSD（盲区检测）
• 红外线（IR）遥控操作与设置
• 宽电压输入：19–32 V DC

概述 / 技术参数表
Model Name: EMS12D2
Screen Type: TFT-LCD
Screen Size: 12.3 "
Resolution: 1920 x 720
Backlight: LED
Brightness: 850 cd/m2
Visible Range: 291.4 x 108.9
Viewing Angle: 85 / 85 / 85 / 85
FOV (H x V x D): 126 x 65 x 158 (wide-angle lens); 200 x 110 x 200 (fisheye)
Storage: 1 x SD Card
Video Input (Video Format): AHD 720P
Video Output (System Format): AHD / CVBS
Function: Support blind spot detection (BSD)
Operation Method: IR remote control
Operating Temperature: -30 °C ~ 80 °C / -22 °F ~ 167 °F
Power Supply: 19V - 32V DC (MAX: 30V)
Power Consumption: 24W
Dimensions (L x W x H): 343 x 145 x 136 mm / 13.5” x 5.7” x 5.35”

特性 / 技术规格

• Model Name: EMS12D2
• Screen Type: TFT-LCD
• Screen Size: 12.3 "
• Resolution: 1920 x 720
• Backlight: LED
• Brightness: 850 cd/m2
• Visible Range: 291.4 x 108.9
• Viewing Angle: 85 / 85 / 85 / 85
• FOV (H x V x D): 126 x 65 x 158 (wide-angle lens); 200 x 110 x 200 (fisheye)
• Storage: 1 x SD Card
• Video Input: AHD 720P
• Video Output: AHD / CVBS
• Function: Support blind spot detection (BSD)
• Operation Method: IR remote control
• Operating Temperature: -30 °C ~ 80 °C (-22 °F ~ 167 °F)
• Power Supply: 19V - 32V DC (MAX: 30V)
• Power Consumption: 24W
• Dimensions: 343 x 145 x 136 mm (13.5” x 5.7” x 5.35”)
