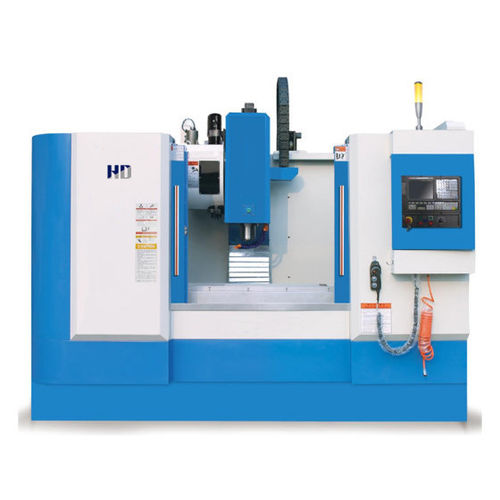

3轴CNC加工中心 VMC series

立式BT40BT 50

最多: 1,500 mm
(59 in)

最少: 450 mm
(18 in)

最多: 800 mm
(31 in)

最少: 320 mm
(13 in)

最多: 700 mm
(28 in)

最少: 420 mm
(17 in)

6,000 rpm, 8,000 rpm
(37,699 rad.min-1, 50,265 rad.min-1)

最多: 18.5 kW
(25.15 hp)

最少: 3.7 kW
(5.03 hp)

15,000 mm/min, 18,000 mm/min, 24,000 mm/min, 32,000 mm/min, 36,000 mm/min
(10 in/s, 12 in/s, 16 in/s, 21 in/s, 24 in/s)

15,000 mm/min, 18,000 mm/min, 24,000 mm/min, 32,000 mm/min, 36,000 mm/min
(10 in/s, 12 in/s, 16 in/s, 21 in/s, 24 in/s)

15,000 mm/min, 18,000 mm/min, 24,000 mm/min
(10 in/s, 12 in/s, 16 in/s)

最多: 1,500 kg
(3,307 lb)

最少: 200 kg
(441 lb)

0.005 mm, 0.006 mm, 0.008 mm
(0 in, 0 in, 0 in)

0.003 mm, 0.005 mm, 0.006 mm
(0 in, 0 in, 0 in)

最多: 12,000 kg
(26,455.47 lb)

最少: 530 kg
(1,168.45 lb)

最多: 4,260 mm
(167.7 in)

最少: 2,100 mm
(82.7 in)

1,759 mm, 2,110 mm, 2,300 mm, 2,800 mm
(69.3 in, 83.1 in, 90.6 in, 110.2 in)

1,892 mm, 1,960 mm, 2,300 mm, 2,700 mm, 3,200 mm
(74.5 in, 77.2 in, 90.6 in, 106.3 in, 126 in)
