石材镂床 Winger series
CNC数控自动3-4轴

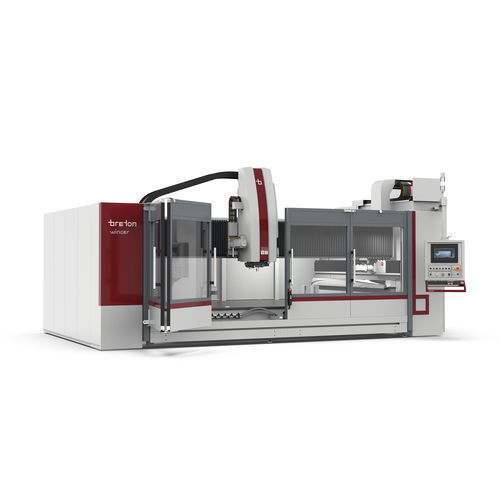

石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 2
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 3
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 4
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 5
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 6
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 7
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 8
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 9
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 10
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 11
石材镂床 - Winger series - Breton SpA | Advanced technologies and materials - CNC数控 / 自动 / 3-4轴 - 图像 - 12
添加到我的收藏夹
添加到产品对比表

产品规格型号

操控类型
CNC数控, 自动
轴数量
3-4轴
主轴数量
单主轴, 多头
所加工材料
用于大理石, 用于石材, 用于花岗岩, 用于板材, 用于陶瓷材料
应用
重型
其他特性
可自动更换工具, 自动, 气动夹固
X轴

3,800 mm
(149.61 in)

Y轴

1,110 mm, 1,800 mm, 1,950 mm, 2,300 mm, 4,000 mm
(43.7 in, 70.87 in, 76.77 in, 90.55 in, 157.48 in)

Z轴

300 mm
(11.81 in)

产品介绍

该机器结构坚固,机械和电子可靠性极高,是厨房台面、洗面台和家具配件等应用领域进行钻孔、成型和轮廓加工的理想之选。 卓越的可靠性提高生产率 结构部件的每个细节都经过精心设计,并在布列塔尼工厂组装,再加上最新一代的西门子电机和电子设备,这意味着布列塔尼 Winger 在同类产品中具有顶级的可靠性。该轮廓加工中心的设计考虑到了机器整个工作寿命期间的总成本。为了最大限度地提高生产率,我们努力减少闲置时间,并使用极其耐用的部件。因此,考虑到机器的整个使用寿命,用户可以节省大量成本。 标准配置的 15 千瓦主轴坚固耐用,可提供所有必要的功率和扭矩,不会过载,也不会对部件造成压力,从而延长了工作寿命,并将运行效率保持在与新机器相当的水平。 刀库是封闭的,因此可以保护刀具不受灰尘和液体的污染,以免影响工作寿命和精度。 结构坚固,实现持久高精度 整体式结构具有低重心和集成式收集箱的特点,不仅坚固耐用,而且还消除了因机床各部件耦合而导致精度不高的风险。在精密加工之前,电桥要经过消除应力的热处理,以确保长期的尺寸稳定性。

---
