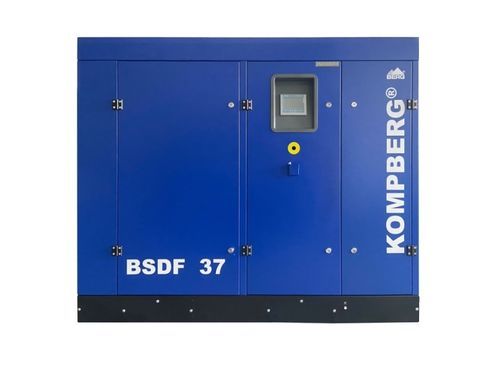

螺杆压缩机 KOMPBERG® BSDF37空气电动式固定式
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 所用技术
- 螺杆
- 类型
- 空气
- 驱动类型
- 电动式
- 可移动性
- 固定式
- 应用领域
- 工业
- 电压
- 400V
- 其他特性
- 紧凑型, 直接传动, 换流器, 带集成变频器
- 压力
最少: 7.5 bar
(108.78 psi)最多: 13 bar
(188.55 psi)- 流量
最少: 1.6 m³/h
(56.5 ft³/h)最多: 6.4 m³/h
(226.01 ft³/h)- 输出功率
1.5 kW, 37 kW
(2.04 hp, 50.31 hp)- 长度
1,750 mm
(68.9 in)- 宽度
900 mm
(35.43 in)- 高度
1,450 mm
(57.09 in)- 重量
950 kg
(2,094.4 lb)- 噪声水平
75 dB
产品介绍
Product overview
The KOMPBERG4 BSDF37 is a screw compressor designed for industrial compressed air supply, combining a 37 kW nominal motor with a direct drive and integrated frequency converter for precise flow control. The unit features removable access doors and a compact footprint to simplify maintenance and installation.
Key features
Technical data
Screw compressor with frequency converter: BSDF 37
Overpressure (bar) - options: 7.5 / 10 / 13
Capacity min-max [m3/min] at 7.5 bar: 1.6 - 6.4
Capacity min-max [m3/min] at 10 bar: 1.6 - 5.4
Capacity min-max [m3/min] at 13 bar: 1.6 - 4.8
Dimensions (L x W x H) [mm]: 1750 x 900 x 1450
Compressed air connection: G 1 1/2
Weight [kg]: 950
Ambient temperature [ C]: +5 - +40
Cooling air demand [m3/h]: 5900
Compressed air outlet temperature: approx. 10 C above ambient
Sound level L [dB(A)]: 75
Power transmission: direct drive
Nominal motor power [kW]: 37
Nominal fan motor power [kW]: 1.5
Motor protection class: IP55
Feed voltage [V]: 400
Recommended supply cable [mm2]: 3x35+PE
Protection fuse [A]: 100
Applications and maintenance
The BSDF37 is suitable for industrial production, workshops and process plants where variable flow and energy efficiency are required. Removable doors and a spacious internal layout reduce service time and facilitate routine maintenance. Frequency converter control enables optimized energy consumption according to demand.
Commercial information
The KOMPBERG4 BSDF37 is a screw compressor designed for industrial compressed air supply, combining a 37 kW nominal motor with a direct drive and integrated frequency converter for precise flow control. The unit features removable access doors and a compact footprint to simplify maintenance and installation.
Key features
- Direct drive 1:1 (airend directly coupled to motor)
- Integrated frequency converter for stepless capacity control
- Available discharge pressures: 7.5 / 10 / 13 bar
- Capacity ranges (depending on pressure): 1.6-6.4 / 1.6-5.4 / 1.6-4.8 m3/min
- Siemens electromotor and controller; German high-quality filters
- Large removable doors for easy component access
Technical data
Screw compressor with frequency converter: BSDF 37
Overpressure (bar) - options: 7.5 / 10 / 13
Capacity min-max [m3/min] at 7.5 bar: 1.6 - 6.4
Capacity min-max [m3/min] at 10 bar: 1.6 - 5.4
Capacity min-max [m3/min] at 13 bar: 1.6 - 4.8
Dimensions (L x W x H) [mm]: 1750 x 900 x 1450
Compressed air connection: G 1 1/2
Weight [kg]: 950
Ambient temperature [ C]: +5 - +40
Cooling air demand [m3/h]: 5900
Compressed air outlet temperature: approx. 10 C above ambient
Sound level L [dB(A)]: 75
Power transmission: direct drive
Nominal motor power [kW]: 37
Nominal fan motor power [kW]: 1.5
Motor protection class: IP55
Feed voltage [V]: 400
Recommended supply cable [mm2]: 3x35+PE
Protection fuse [A]: 100
Applications and maintenance
The BSDF37 is suitable for industrial production, workshops and process plants where variable flow and energy efficiency are required. Removable doors and a spacious internal layout reduce service time and facilitate routine maintenance. Frequency converter control enables optimized energy consumption according to demand.
Commercial information
- Manufacturer: BERG Kompressoren GmbH
- Model: KOMPBERG4 BSDF37
- Net price: 25,650.00 (net)
- Availability: approx. 6-7 weeks
