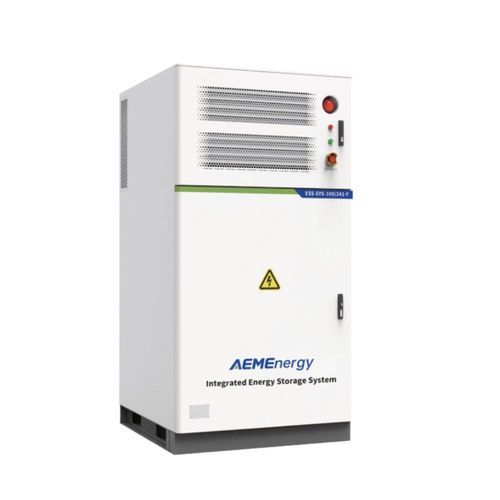

盐酸锂铁储能系统 UniPower C&I All-in-One BESS

LFP紧凑型风冷式

产品概述
AEME的C&I空冷式电池储能系统（BESS），型号ESS-SYS-68/241-Y与ESS-SYS-100/241-Y，为商业与工业储能提供一体化解决方案。该系统采用磷酸铁锂（LFP）电芯，集成BMS、PCS、EMS及云端管理。具备多层火灾检测与灭火、远程关机、紧急停机联动、智能空冷热管理和噪声控制功能。模块化机柜支持并列与背靠背安装，适用于场地空间受限的C&I现场部署。

主要特性与应用

• 占地紧凑：模块化紧凑机柜（1200×2350×1300 mm），便于密集布置。
• 安装灵活：一体化设计支持并列与背靠背配置，优化场地利用率。
• 效率：系统总体效率>86%，通过优化的热绝缘与高效PCS提升能量产出。
• 安全与防火：BMS与PCS双层监控，四合一早期检测（烟雾、温度、CO、VOC），气溶胶灭火与水基抑制相结合，爆炸泄压设计及紧急停机联动。
• 热管理与噪声控制：工业级智能空冷，具备噪声抑制设计（1 m处测得75 dB）。
• 数字化管理与通信：3S（BMS、PCS、EMS）+ 云实现全生命周期管理；接口：CAN、RS485、以太网、4G；协议：CAN、Modbus RTU、Modbus TCP、MQTT。
• 典型应用：商业建筑、工业场站、数据中心、微电网、削峰与备电场景。

规格
Product Model: ESS-SYS-68/241-Y; ESS-SYS-100/241-Y
Battery Type: Lithium Iron Phosphate (LFP)
Cycle Life: ≥6000 cycles (95% DOD charge/discharge, 25±2℃, EOL 80%)
Depth of Discharge: 0.95 DOD
Rated Energy (kWh): 241.15 kWh (0.5P, 25±2℃)
Nominal Voltage (V): 768 V
Voltage Range (V): 672–864 V
Cell Type: LFP 3.2 V / 314 Ah
Battery Configuration: 1P24S × 10
AC Side Rated Power: 68 kW (ESS-SYS-68/241-Y); 100 kW (ESS-SYS-100/241-Y)
AC Side Maximum Power: 75 kW (ESS-SYS-68/241-Y); 110 kW (ESS-SYS-100/241-Y)
Maximum Output Current (A): 196 (ESS-SYS-68/241-Y); 158 (ESS-SYS-100/241-Y)
Rated Frequency (Hz): 50/60
Harmonic Current: <3% (at rated power)
DC Component: <0.5% (at rated power)
Rated AC Voltage (V): AC 220; AC 400
Power Factor: >0.99 (at rated power)
Power Factor Adjustment Range: 1 (leading) – 1 (lagging)
Isolation Method: Transformerless
Wiring Method: 3P+PE
Overall System Efficiency: >86%
Noise Level (dB): 75 (measured at 1 m)
SOE Estimation Accuracy: <5%
Protection Level: IP55
Operating Temperature (℃): -20~55
Operating Humidity: ≤95% (non-condensing)
Operating Altitude (m): 4000 (derated above 2000 m)
Fire Protection System: Composite detection + gas extinguishing + water-based fire suppression
Early Detection: Four-in-one detector (smoke, temperature, CO, VOC)
Thermal Management System: Industrial-grade AC, intelligent air cooling
Gas Extinguishing Medium: Aerosol
System Dimensions (W×H×D mm): 1200×2350×1300
Weight (kg): 2550
Communication Interfaces: CAN, RS485, Ethernet, 4G
Communication Protocols: CAN, Modbus RTU, Modbus TCP, MQTT

技术规格

• Product Model: ESS-SYS-68/241-Y; ESS-SYS-100/241-Y
• Rated Energy: 241.15 kWh (0.5P, 25±2℃)
• Battery Type / Cell: LFP / LFP 3.2 V / 314 Ah
• Cycle Life: ≥6000 cycles (95% DOD, 25±2℃, EOL 80%)
• Nominal Voltage: 768 V (Voltage Range 672–864 V)
• AC Rated Power: 68 kW / 100 kW
• AC Max Power: 75 kW / 110 kW
• Protection Level: IP55
• Operating Temp / Humidity: -20~55 ℃ / ≤95% non-condensing
• Dimensions (W×H×D mm): 1200×2350×1300
• Weight: 2550 kg
• Fire Protection: Composite detection + gas extinguishing + water-based suppression
• Communication: CAN, RS485, Ethernet, 4G (Protocols: CAN, Modbus RTU, Modbus TCP, MQTT)
