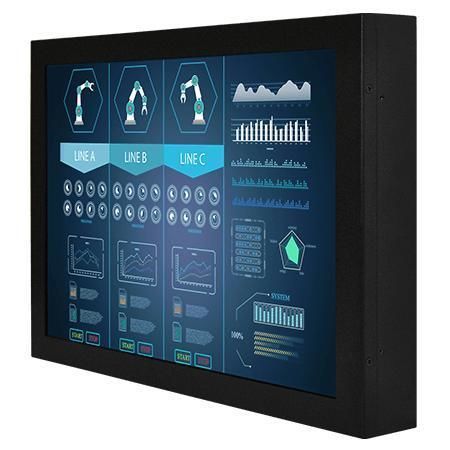

液晶显示器 W12L100-CHM9

电阻式触摸屏工业12.1"

概述
Winmate W12L100-CHM9 是一款面向工业可视化、控制室与设备监控的 12.1 英寸机箱式显示器。其金属外壳配铝质边框，采用无风扇设计与低功耗方案，适合 24/7 持续运行。安装方式支持机箱安装与 VESA 固定；触控默认为电阻式，亦可选配保护玻璃或 SAW 触控。

主要特性

• 12.1" 显示屏，分辨率 1280 x 800
• VGA 输入（默认）；HDMI 与 DVI 可选
• 机箱安装形态，支持 VESA 固定
• 面板亮度 400 nits，对比度 1000:1
• 默认电阻式触控；可选 SAW 或仅保护玻璃
• 无风扇设计，金属外壳与铝质边框

认证

• CE
• FCC

技术规格

• Display - Size: 12.1 inches
• Display - Resolution: 1280 x 800
• Display - Panel Brightness: 400 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 88,88,88,88
• Display - Display Color: 16.2M Colors
• Display - Active Area: 261.12 x 163.2 mm
• Touch / Glass - Default: Resistive Touch Screen
• Touch / Glass - Optional: Protection Glass (no touch) or SAW Touch (Surface Acoustic Wave)
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• IO Ports - USB: 1 x USB for touch screen
• IO Ports - Video: 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional)
• IO Ports - Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical - Dimension: 310 x 200 x 45 mm
• Mechanical - Mounting: VESA Mount
• Mechanical - Enclosure: Metal housing with aluminum bezel
• Mechanical - Cooling System: Fanless design
• Accessory - Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Accessory - Optional: Remote controller (optional, varies by product)
• Power - Power Rating: 12V DC input (24V DC optional)
• Control - Buttons: 5 keys (-, +, Power, Esc, Enter)
