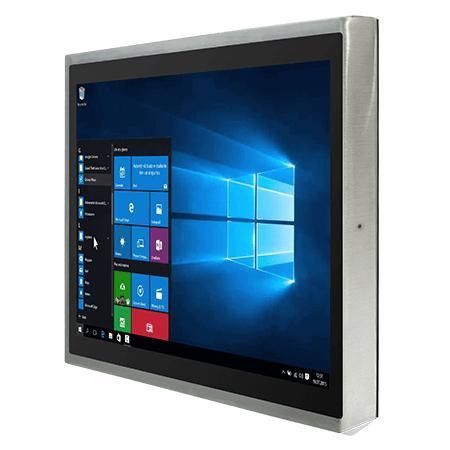

PCAP电容式触摸屏工业平板电脑 R19IAD3S-SPM169

多触点触摸屏19"Intel® Core i5-1235U

产品概述
R19IAD3S-SPM169 为一款 19 英寸不锈钢机箱式面板电脑，专为高卫生及恶劣工业环境设计。机身采用 SUS316/AISI316 不锈钢，配备真正平坦的边缘到边缘投射电容触摸屏（P-CAP）及 IP69K 全防护外壳，适用于食品饮料、制药和化工等需要高洁净度和可高压清洗的场景。

重点特色

• 19 英寸，1280 x 1024 投射电容多点触控，真平面边缘到边缘设计
• 第12代 Intel® Core™ i5-1235U 3.3GHz（睿频至 4.40 GHz）
• SUS 316 / AISI 316 不锈钢外壳，耐腐蚀
• 全封闭 IP69K 防水防尘外壳
• 支持手套/雨水触摸模式
• 丰富 I/O：USB2.0、RS232、RJ45 10/100/1000
• 配备 M12 防水连接器及现场接线用适配电缆
• 标准 VESA 安装；可选 YOKE 支架
• 可选光学贴合

认证

• IP69K
• FCC
• CE

产品详情

• 全面防水 — IP69K 等级可承受高压高温冲洗，防护灰尘侵入，满足严格清洗工艺要求。
• 不锈钢结构 — SUS316 / AISI316 外壳提供化学抗性与耐腐蚀性，适用于食品、饮料及化工厂自动化。
• 投射电容多点触控 (P-CAP) — 高灵敏触控，支持手势操作；支持手套与雨水模式，适应现场操作需求。

Caractéristiques / spécifications techniques

• Display - Size: 19.0 inches; Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP); Resolution: 1280 x 1024; Panel Brightness: 250 nits; Contrast Ratio: 1000:1; View Angles: 85/85/80/80; Active Area: 376.32 x 301.06 mm
• System - Processor: Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• System - Memory: 8GB (Default); 16GB (Optional); 32GB (Optional)
• System - Storage: 128GB SSD (Default); 256GB / 512GB / 1TB / 2TB / 4TB optional; 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
• System - Ethernet controller: 2 x Intel® Ethernet Controller
• System - Security: TPM 2.0
• System - Operating System: Windows 11 IoT Enterprise 64-bit (Optional); Windows 11 Pro 64-bit (Optional); Linux Ubuntu 22.04 (Optional, does not support Wake on Touch)
• System - WLAN: Support (Optional)
• System - BT: Support (Optional)
• Mechanical - Dimension: 468 x 395 x 57 mm; Mounting: VESA mount (Default); Yoke mount (Optional)
• Mechanical - Enclosure: Stainless Housing (SUS 316 / AISI 316 for food & chemical use)
• Mechanical - Cooling System: Fanless Design
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 45°C
• Environment - Storage Temperature: -20°C to 60°C
• Environment - IP rating: IP69K
• Certification: CE, FCC
• IO Ports - USB Port: 1 x M12 Waterproof Connector for 2 x USB2.0
• IO Ports - Serial Port: 1 x M12 waterproof connector for RS232
• IO Ports - LAN: 1 x Waterproof Giga LAN RJ45 Connector
• IO Ports - Indicator: 1 x LED Indicator for power; 1 x LED Indicator for storage
• Control - Button: 1 x Power Button; 1 x Reset Button
• Accessory: 100~240V AC to DC Adapter with waterproof connector; Power Cord; External USB cable with waterproof connector; External COM cable with waterproof connector; External LAN cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Power - Power Rating: 12V DC (M12 type)
