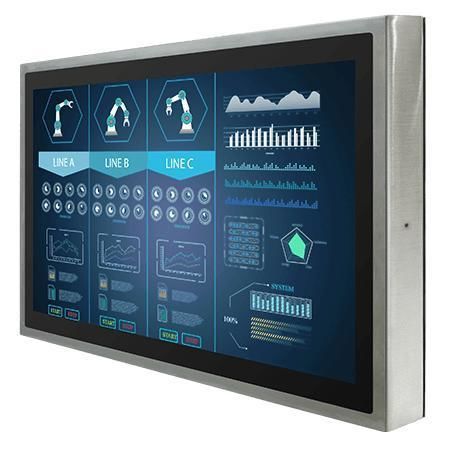

感应电容显示器 W32L100-SPA3

多点触摸屏式工业HMI接口

重点特色

• 32英寸 1920 x 1080 IP65 不锈钢投射电容机箱式显示屏
• 支持 VESA / YOKE 安装
• 覆盖式机箱设计，风扇无噪声的纤薄外形
• 投射电容多点触控（P-CAP）
• SUS 316 / AISI 316 不锈钢外壳
• 前面板完整 IP65 防水防尘
• 光学贴合（可选）

认证

• IP65
• CE
• FCC

产品概述
W32L100-SPA3 专为需要频繁清洁和严格卫生标准的工业与洁净环境设计，如食品、饮料与制药生产。SUS 316 不锈钢外壳提供耐腐蚀的全不锈钢 HMI 解决方案。高灵敏度 P-CAP 多点触控面板支持旋转、拖拽、多人手势缩放等交互。覆盖式机箱支持后置或 VESA/YOKE 安装，实现灵活布置与整洁集成；无风扇设计降低维护要求。显示模组在洁净室组装，确保一致的图像质量与可靠性。可按需定制尺寸、客户徽标、LCD 亮度、玻璃表面处理、端口与各国电源插头等配置。

特性 / 技术规格

• Size: 32 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 400 nits
• Contrast Ratio: 4000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 392.85 mm
• Mounting: VESA Mount (supports VESA / YOKE mount)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP rating: IP65
• Certification: CE, FCC
• USB Port: 1x M12 waterproof connector for touch control
• Video: 1x M12 type connector for VGA input (Default); 1x waterproof DVI input (Optional); 1x waterproof connector for HDMI input (Optional)
• Indicator: 1 x LED Indicator for power; 1 x LED Indicator for status
• Control Buttons: Power, Adjust up, Adjust down, ESC (Auto), OK (Menu)
• Accessory (Included): 100~240V AC to DC Adapter with waterproof connector; Power Cord; External USB cable with waterproof connector for touchscreen control; External VGA cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Optional Accessory: External HDMI cable with waterproof connector; External DVI cable with waterproof connector; External Power cable with waterproof connector (for AC power built-in)
• Power Rating: 24V DC (M12 type)

适用场景与定制
适用于食品与饮料、制药、化工及其他需要卫生和定期冲洗的工业现场的人机界面、控制面板和操作站。提供定制与配件以便集成到特定生产线与控制系统。
