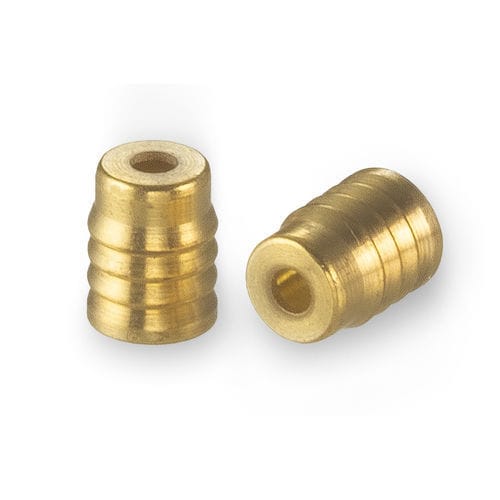

孔限流器 RPGF2554005S

这种无螺纹、可靠、高精度的限流器专为安装到塑料外壳和配件中而设计。其独特的压入式设计便于安装，可确保固定并防止旁路泄漏。孔口由黄铜制成，可与多种气体兼容。它已通过氮气流量测试，标称流量公差为 ± 5%。更严格的公差可根据客户要求定制。为提高精确度，孔口在使用方向上进行测试：压入式 - 塑料直径：2.54 毫米流量范围：500 - 45,000 欧姆500 - 45,000 Lohms测试流体：清洁干燥的氮气最大工作压力：取决于外壳材料一般性能特性规格欧姆率公差± 5%测试流体清洁和干燥氮气最大工作压力取决于外壳材料、配置和操作条件设计用于安装到塑料中、如聚丙烯、尼龙、乙缩醛、聚乙烯和 PEEK材料组件材料阀体黄铜 C36000零件编号和规格零件编号流量方向欧姆率近似重量 (g) 安装孔图纸编号RPGF2554005SF向前 500 Lohms0.081INST005724SRPGF2554006SForward600 Lohms0.081INST005724SRPGF2554008SForward800 Lohms0.081INST005724SRPGF2554010SForward1000 Lohms0.081INST005724SRPGF2554012SForward1200 Lohms0.081INST005724SRPGF2554015SForward1500 Lohms0.081INST005724SRPGF2554020SForward2000 Lohms0.081INST005724SRPGF2554025SForward2500 Lohms0.081INST005724SRPGF2554030SForward3000 Lohms0.081INST005724SRPGF2554040SForward4000 Lohms0.081INST005724SRPGF2554050SForward5000 Lohms0.081INST005724SRPGF2554060SForward6000 Lohms0.081INST005724SRPGF2554080SForward8000 Lohms0.081INST005724SRPGF2554100SForward10,000 Lohms0.081INST005724SRPGF2554120SForward12,000 Lohms0.081INST005724SRPGF2554150SForward15,000 Lohms0.081INST005724SRPGF2554200SForward20,000 Lohms0.081INST005724SRPGF2554250SForward25,000 Lohms0.081INST005724SRPGF2554300SForward30,000 Lohms0.081INST005724SRPGF2554400SForward40,000 Lohms0.081INST005724SRPGF2554450SForward45,000 Lohms0.081INST005724SRPGR2554005SReverse500 Lohms0.081INST005724SRPGR2554006SReverse600 Lohms0.081INST005724SRPGR2554008SReverse800 Lohms0.081INST005724SRPGR2554010SReverse1000 Lohms0.081INST005724SRPGR2554012SReverse1200 Lohms0.081INST005724SRPGR2554015SReverse1500 Lohms0.081INST005724SRPGR2554020SReverse2000 Lohms0.081INST005724SRPGR2554025SReverse2500 Lohms0.081INST005724SRPGR2554030SReverse3000 Lohms0.081INST005724SRPGR2554040SReverse4000 Lohms0.081INST005724SRPGR2554050SReverse5000 Lohms0.081INST005724SRPGR2554060SReverse6000 Lohms0.081INST005724SRPGR2554080SReverse8000 Lohms0.081INST005724SRPGR2554100SReverse10,000 Lohms0.081INST005724SRPGR2554120SReverse12,000 Lohms0.081INST005724SRPGR2554150SReverse15,000 Lohms0.081INST005724SRPGR2554200SReverse20,000 Lohms0.081INST005724SRPGR2554250SReverse25,000 Lohms0.081INST005724SRPGR2554300SReverse30,000 Lohms0.081INST005724SRPGR2554400SReverse40,000 Lohms0.081INST005724SRPGR2554450SReverse45,000 Lohms0.081INST005724SInstallation Procedure: 2.5 毫米压入式孔口安装程序（详见产品页面）安装工具图纸编号：CCRT0029354SCAD 封套：用于气体的正向和反向 2.5 mm 316 不锈钢压入式单孔节流阀型号（详情请参见产品页面）更多信息：工业微液压汽车和工业解决方案手册》第 B19-B20 和 B25 页配套产品：有关配套的 2.5 mm 安全滤网过滤器，请单击此处：压入式 - 塑料直径：2.54 毫米流量范围：500 - 45,000 欧姆500 - 45,000 Lohms测试流体：清洁干燥的氮气：清洁干燥的氮气最大工作压力：取决于外壳材料规格/技术特性主体材料：黄铜 C36000Lohm 率公差：± 5%设计用于安装在塑料（聚丙烯、聚苯乙烯、聚碳酸酯）中：塑料（聚丙烯、尼龙、乙缩醛、聚乙烯、PEEK）大约重量：0.08 克安装孔图纸号：1INST005724S
