移动式排烟机 TFS 250工业焊接激光
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 可移动性
- 移动式
- 应用
- 工业, 焊接, 激光, 钎焊, 实验室
- 过滤
- 活性炭过滤, HEPA过滤器
- 其他特性
- 带吸气臂, 灰尘, 紧凑型, 带通风
- 流量
最少: 50 m³/h
(1,766 ft³/h)最多: 500 m³/h
(17,657 ft³/h)- 输出功率
最少: 1.1 kW
(1.5 hp)最多: 1.8 kW
(2.45 hp)
产品介绍
Overview

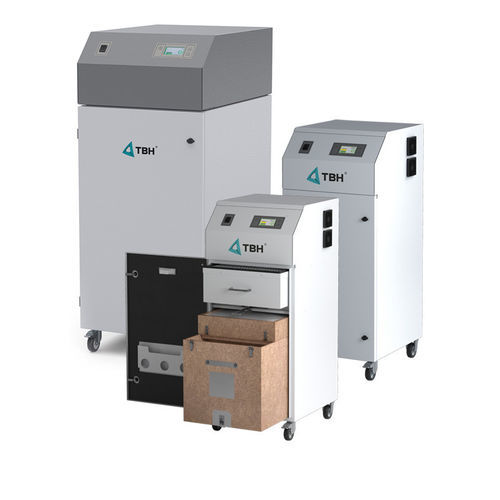

The TFS 250 – Powerful extraction for laser marking and soldering processes. The TFS 250 was specially developed for laser marking, laser engraving, laser cutting, and soldering workstations that require high negative pressure. It achieves an air flow rate of 50 to 500 m³/h and is ideal for applications with long pipes or narrow cross-sections. Despite its compact design, it offers a low-maintenance and efficient solution for a wide range of manufacturing processes. This model will be W3 certified from Q3/2025. The TFS 250 is available as STANDARD or PLUS and can be optionally equipped with additional accessories for industrial extraction.
Applications
Product variants
Optional equipment
Notes
Motor: 1.8 kW (mentioned in product description) and 1.1 kW (listed in technical data). Air flow range: 50 to 500 m³/h. Ideal for long piping runs and narrow cross-sections. W3 certification planned from Q3/2025.
Caractéristiques / spécifications techniques
The TFS 250 – Powerful extraction for laser marking and soldering processes. The TFS 250 was specially developed for laser marking, laser engraving, laser cutting, and soldering workstations that require high negative pressure. It achieves an air flow rate of 50 to 500 m³/h and is ideal for applications with long pipes or narrow cross-sections. Despite its compact design, it offers a low-maintenance and efficient solution for a wide range of manufacturing processes. This model will be W3 certified from Q3/2025. The TFS 250 is available as STANDARD or PLUS and can be optionally equipped with additional accessories for industrial extraction.
Applications
- Laser marking
- Laser engraving
- Laser cutting
- Soldering workstations
Product variants
- TFS 250 Standard — Filter configuration: SafeLine filter (F9), particle filter H14
- TFS 250 Plus — Filter configuration: SafeLine filter (F9), particle filter H14, activated carbon
Optional equipment
- Extraction arm
- Spark arrestor
- Gravity separator
Notes
Motor: 1.8 kW (mentioned in product description) and 1.1 kW (listed in technical data). Air flow range: 50 to 500 m³/h. Ideal for long piping runs and narrow cross-sections. W3 certification planned from Q3/2025.
Caractéristiques / spécifications techniques
- Weight: 95 kg
- Dimensions: 1050 × 480 × 540 cm
- Air volume flow: 50 – 500 m³/h
- Effective air volume flow: (not specified)
- Max. static pressure: 15000 Pa
- Voltage: 120/230 V
- Frequency: 50/60 Hz
- Engine / Motor power: 1.1 kW (technical data) — 1.8 kW stated in product description
- Sound level: (not specified)
- Serial interface: 25-pin Sub-D
