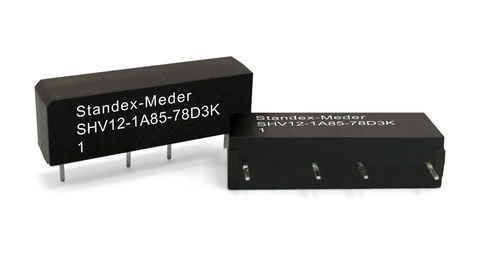

高电压簧片继电器 SHV

SHV 干簧继电器 询价表 查询经销商库存 描述 The SHV single in-line series is a high voltage reed relay and instrumentation grade reed relay supplied in an molded housing capable of switching up to 1kVDC and breakdown voltage of 4kVDC. This high voltage reed relay series features an insulation resistance >5 x 10^12 Ω and utilizes minimum PCB area, at only 50% compared to our DIP and DIL reed relay series. It is even smaller than the former SIL-HV Reed Relay. UL – Certificate of Compliance 规格 Coil Voltage (VDC)05, 12 Coil Resistance (Ω)140-500 Contact Form1A (SPST) Normally Open (N.O.) Rated Power Max.100W/1,000VDC
