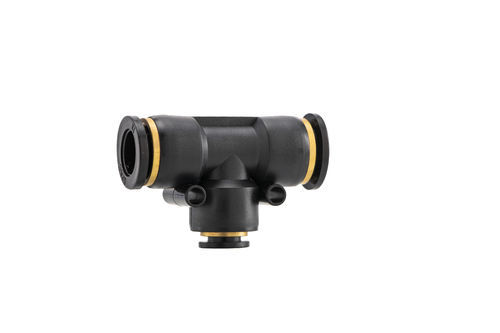

气动连接器 E series

T 型M5用于管道

概述
E-Series 推入式接头，适用于气动和仪表系统的快速连接。适配器、弯头、三通、Y形接头、Banjo弯头、流量控制阀和手动阀，适用于管径4mm至16mm，提供BSP及M5螺纹选项。

主要特性

• 管径范围：Ø4 mm – Ø16 mm
• 螺纹选项：M5、BSP 1/8"、BSP 1/4"、BSP 3/8"、BSP 1/2"
• 推入式连接，便于快速安装/拆卸管路
• 可用产品类型：接头、弯头、三通、Y型、Banjo弯头、流量控制阀、手动阀
• 超过250种配置（页面列出252种配置）

可用接头类型（页面筛选项）

• Banjo弯头
• Banjo弯头 2X
• Banjo弯头 3X
• 封堵塞
• 分支外螺纹Y（Branch Male Y）
• 穿板接头（Bulk Head）
• 十字接头
• 端塞
• 等径十字
• 等径弯头
• 等径多路T
• 等径三通
• 等径Y
• 内螺纹弯头
• 流量控制阀
• 手动阀
• 外螺纹弯头
• 大小径接头（Reducer）
• 管对管接头
• 不等径三通
• 不等径Y

可用管径（筛选）

• 4mm
• 6mm
• 8mm
• 10mm
• 12mm
• 14mm
• 16mm

螺纹选项（筛选）

• M5
• BSP 1/8"
• BSP 1/4"
• BSP 3/8"
• BSP 1/2"

产品表（系列表中选取的行）
Part Number | Type | Tube | Thread | Price (GBP)
EHVFF6-6-SPAC | Hand Valve | 6mm | Tube-to-Tube | £11.46
EHVFF8-8-SPAC | Hand Valve | 8mm | Tube-to-Tube | £12.11
EHVFF10-10-SPAC | Hand Valve | 10mm | Tube-to-Tube | £14.28
EHVFF12-12-SPAC | Hand Valve | 12mm | Tube-to-Tube | £17.36
EPE04 | Equal Tee | 4mm | Tube-to-Tube | £0.90
EPE06 | Equal Tee | 6mm | Tube-to-Tube | £0.97
EPE08 | Equal Tee | 8mm | Tube-to-Tube | £1.12
EPE10 | Equal Tee | 10mm | Tube-to-Tube | £1.32
EPE12 | Equal Tee | 12mm | Tube-to-Tube | £1.71
EPE14 | Equal Tee | 14mm | Tube-to-Tube | £3.81
EPE16 | Equal Tee | 16mm | Tube-to-Tube | £4.20
EPEG6-4 | Unequal Tee | 6mm | Tube-to-Tube | £1.33
EPEG8-6 | Unequal Tee | 8mm | Tube-to-Tube | £1.83
EPEG10-6 | Unequal Tee | 10mm | Tube-to-Tube | £1.89
EPEG10-8 | Unequal Tee | 10mm | Tube-to-Tube | £1.98
EPEG12-8 | Unequal Tee | 12mm | Tube-to-Tube | £2.13
EPEG12-10 | Unequal Tee | 12mm | Tube-to-Tube | £2.38
EPEW6-4 | Unequal Tee | 6mm | Tube-to-Tube | £1.33
EPEW8-6 | Unequal Tee | 8mm | Tube-to-Tube | £1.83
EPEW10-6 | Unequal Tee | 10mm | Tube-to-Tube | £1.89
EPEW10-8 | Unequal Tee | 10mm | Tube-to-Tube | £1.98
EPEW12-8 | Unequal Tee | 12mm | Tube-to-Tube | £2.13
EPEW12-10 | Unequal Tee | 12mm | Tube-to-Tube | £2.38
EPG6-4 | Reducer | 6mm | Tube-to-Tube | £0.97
EPG8-6 | Reducer | 8mm | Tube-to-Tube | £1.19
EPG10-6 | Reducer | 10mm | Tube-to-Tube | £1.32
EPG10-8 | Reducer | 10mm | Tube-to-Tube | £1.32
EPG12-8 | Reducer | 12mm | Tube-to-Tube | £1.57
EPG12-10 | Reducer | 12mm | Tube-to-Tube | £1.57
EPG16-12 | Reducer | 16mm | Tube-to-Tube | £3.65
EPH4-01 | Banjo Elbow | 4mm | BSP 1/8" | £2.64
EPH4-02 | Banjo Elbow | 4mm | BSP 1/4" | £2.90
EPH4-M5 | Banjo Elbow | 4mm | M5 | £2.79
EPH6-01 | Banjo Elbow | 6mm | BSP 1/8" | £2.79
EPH6-02 | Banjo Elbow | 6mm | BSP 1/4" | £3.04
EPH6-03 | Banjo Elbow | 6mm | BSP 3/8" | £4.02
EPH6-M5 | Banjo Elbow | 6mm | M5 | £2.91
EPH8-01 | Banjo Elbow | 8mm | BSP 1/8" | £4.23
EPH8-02 | Banjo Elbow | 8mm | BSP 1/4" | £4.23
EPH8-03 | Banjo Elbow | 8mm | BSP 3/8" | £5.38
EPH8-04 | Banjo Elbow | 8mm | BSP 1/2" | £7.70
EPH10-02 | Banjo Elbow | 10mm | BSP 1/4" | £5.38
EPH10-03 | Banjo Elbow | 10mm | BSP 3/8" | £6.00
EPH10-04 | Banjo Elbow | 10mm | BSP 1/2" | £7.70
EPH12-02 | Banjo Elbow | 12mm | BSP 1/4" | £6.50
EPH12-03 | Banjo Elbow | 12mm | BSP 3/8" | £7.70
EPH12-04 | Banjo Elbow | 12mm | BSP 1/2" | £8.64
EPH2X4-01 | Banjo Elbow 2X | 4mm | BSP 1/8" | £4.95
EPH2X4-02 | Banjo Elbow 2X | 4mm | BSP 1/4" | £6.93

技术规格

• 系列名称: E-Series Push-In Fittings
• 应用: 气动及仪表系统
• 管径兼容: Ø4 mm, Ø6 mm, Ø8 mm, Ø10 mm, Ø12 mm, Ø14 mm, Ø16 mm
• 连接类型: 推入式快速连接
• 螺纹选项: M5, BSP 1/8", BSP 1/4", BSP 3/8", BSP 1/2"
• 产品形式: 接头、弯头、三通、Y形、Banjo弯头、流量控制阀、手动阀、大小径接头、封堵
• 页面列出的配置数量: 252
• 页面显示的价格以GBP为单位（表中为示例）。价格随零件号和尺寸而变化。
