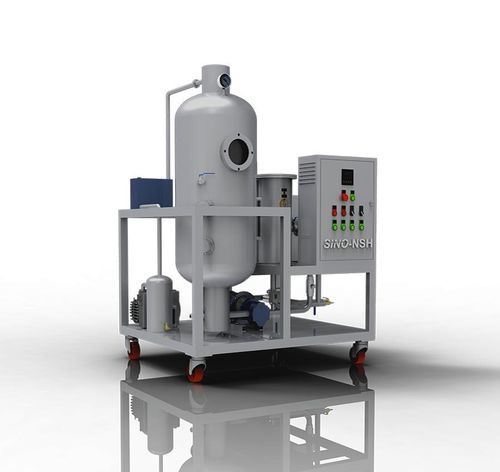

油净化系统 NSH-LV series工业用途
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 处理材料
- 用于油
- 应用
- 工业用途
产品介绍
General
NSH-LV 是一款适用于液压油及其他润滑油的真空油品净化装置，可去除水分、溶解气体和颗粒污染物，恢复油品性能。支持定制化配置。
Application
LV 系列用于净化与再生液压油、机油、冷却油及各类润滑油。润滑系统故障常由含水、含气及杂质引起；LV 系列能快速去除水分、气体和固体颗粒，延长设备寿命并提升系统可靠性。
Features
Oil Data After Purification
Clearness | NAS | ≤ 6
Water Content | ppm | ≤ 100
Gas Content | % | ≤ 0.1
Impurity Size | μm | ≤ 5
Machine Specification (selection)
Item | Unit | LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200
Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000
Vacuum Range | Mpa | -0.065 ~ -0.096
Working Pressure | Mpa | ≤ 0.3
Clearness | NAS | ≤ 6
Temperature Range | °C | 40 ~ 80
Water Content | PPM | ≤ 100
Impurity Size | μm | ≤ 5
Power Supply | V | 380V / 3Phase / 50Hz (or as needed)
Working Noise | dB | ≤ 70 ~ ≤ 75
Heating Power | kW | 15 | 18 | 30 | 45 | 90 | 120 | 180
Total Power | kW | 17 | 21 | 35 | 50 | 97 | 126 | 186
Pipeline Diameter | mm | 25 | 25 | 25 | 32 | 40 | 50 | 65
Net Weight | Kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400
Size (L×W×H) | mm | Length: 1350 / 1500 / 1550 / 1900 / 2200 / 2400 / 2900; Width: 1100 / 1200 / 1250 / 1400 / 1500 / 1600 / 1800; Height: 1700 / 1750 / 1800 / 1800 / 1850 / 1900 / 2000
Presentations Options
Also named
真空脱水器；真空净化系统；油品脱气；再生；回收
Caractéristiques / spécifications techniques
NSH-LV 是一款适用于液压油及其他润滑油的真空油品净化装置，可去除水分、溶解气体和颗粒污染物，恢复油品性能。支持定制化配置。
Application
LV 系列用于净化与再生液压油、机油、冷却油及各类润滑油。润滑系统故障常由含水、含气及杂质引起；LV 系列能快速去除水分、气体和固体颗粒，延长设备寿命并提升系统可靠性。
Features
- 采用特殊 NSH 过滤材料，高效去除不纯物，快速消除水、气和颗粒。
- 自动反冲洗系统延长滤芯寿命并保持过滤性能。
- 高性能安全系统，包括压力保护装置和自动温控系统。
- 支持在线连续运行。
- 操作和维护简便，降低备件与更换成本。
- 体积小、重量轻、噪声低。
- 提供多种规格与配置（包括合金防护罩）。
Oil Data After Purification
Clearness | NAS | ≤ 6
Water Content | ppm | ≤ 100
Gas Content | % | ≤ 0.1
Impurity Size | μm | ≤ 5
Machine Specification (selection)
Item | Unit | LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200
Flow Rate | L/H | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000
Vacuum Range | Mpa | -0.065 ~ -0.096
Working Pressure | Mpa | ≤ 0.3
Clearness | NAS | ≤ 6
Temperature Range | °C | 40 ~ 80
Water Content | PPM | ≤ 100
Impurity Size | μm | ≤ 5
Power Supply | V | 380V / 3Phase / 50Hz (or as needed)
Working Noise | dB | ≤ 70 ~ ≤ 75
Heating Power | kW | 15 | 18 | 30 | 45 | 90 | 120 | 180
Total Power | kW | 17 | 21 | 35 | 50 | 97 | 126 | 186
Pipeline Diameter | mm | 25 | 25 | 25 | 32 | 40 | 50 | 65
Net Weight | Kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400
Size (L×W×H) | mm | Length: 1350 / 1500 / 1550 / 1900 / 2200 / 2400 / 2900; Width: 1100 / 1200 / 1250 / 1400 / 1500 / 1600 / 1800; Height: 1700 / 1750 / 1800 / 1800 / 1850 / 1900 / 2000
Presentations Options
- 带万向轮底座框架
- 带万向轮的金属外罩
- 单轴拖车上的金属外罩
- 双轴拖车上的底座框架
- 双轴拖车上的金属外罩
- 双轴拖车上的金属外罩及操作间
Also named
真空脱水器；真空净化系统；油品脱气；再生；回收
Caractéristiques / spécifications techniques
- Brand Name: Sino-NSH
- Model / Denomination commerciale: NSH-LV
- Series: LV
- Treating Oil: Lubrication Oil (hydraulic oil, machine oil, coolant oil, etc.)
- Function: Dehydration, Degassing, Impurities-removal
- Flow Rate: 600–12,000 L/H (model dependent)
- Vacuum Range: -0.065 ~ -0.096 Mpa
- Working Pressure: ≤ 0.3 Mpa
- Clearness (after purification): NAS ≤ 6
- Water Content (after purification): ≤ 100 ppm
- Gas Content (after purification): ≤ 0.1 %
- Impurity Size (after purification): ≤ 5 μm
- Temperature Range: 40 ~ 80 °C
- Power Supply: 380VAC / 3Phase / 50Hz (or tailorable)
- Working Noise: ≤ 70–75 dB
- Heating Power (depending on model): 15–180 kW
- Total Power (depending on model): 17–186 kW
- Pipeline Diameter (depending on model): 25–65 mm
- Net Weight (depending on model): 600–2400 Kg
- Delivery Time: 10 working days
- Supply Ability: 50 sets per month
