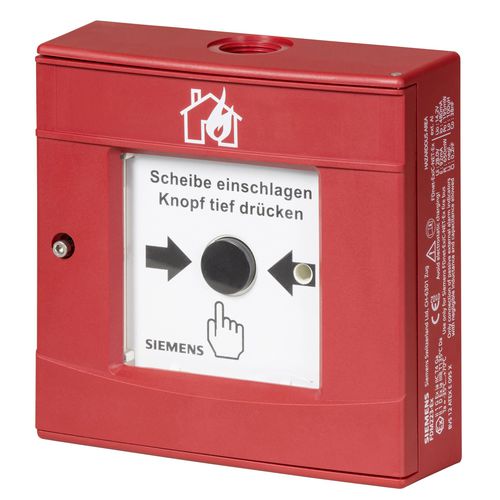

产品描述可寻址手动报警按钮(FDnet-Ex / C-NET-Ex),适用于潜在爆炸性环境。适配于寻址的 Sinteso FS20 和 Cerberus PRO FS720 火灾探测系统。间接触发。两线安装。
产品标识- 产品编号:FDM223-Ex
- 库存编号:S54329-F5-A1
- GTIN (EAN):4047625039875
特性 / 兼容性- 用于潜在爆炸性大气的可寻址 FDnet-Ex / C-NET-Ex 手动报警按钮
- 兼容系统:FDnet > FS20、AlgoRex、SIGMASYS C-NET > FS720
- 通信协议:FDnet-Ex / C-NET-Ex
可用文档(标题)- 技术资料 - Manual call point
- VdS 证书 - FDM223-Ex
- UKCA Certificate of constancy of performance - FDM223-Ex
- RCM Declaration - Cerberus
- Declaration of Performance - FDM223-Ex
- EC Declaration - FDM223-Ex
- EC Declaration MED - Manual-Call-Points
- UKCA Conformity Declaration - FDM223-Ex
- UKCA Declaration of Performance - FDM223-Ex
- Environmental Product Declaration - FDM223-Ex
- EPD Type II with LCA - Sinteso / Cerberus - Manual Call Points
- 安装说明:在具爆炸危险区域使用寻址探测器回路的火灾探测系统
- Mounting Instruction - Manual call point
技术特性 / 规格- 标准:IEC/EN 60079-0、IEC/EN 60079-11、EN 54-18
- 工作电压:DC 13…28 V
- 防护等级:IP44;带保护密封件时为 IP66(DMZ1197-AD)
- 静态电流:200 µA
- 相对湿度:≤95 % rel.
- 存储温度:-35…+75 °C
- 工作温度:-25…+70 °C
- Ex 分类:IECEx scheme: Ex ia IIC T4 Ga, Ta = -35…70 °C;Ex ia IIIB T135 °C Da, Ta = -35…70 °C
- 通信协议:FDnet-Ex / C-NET-Ex
- 系统兼容性:FDnet > FS20、AlgoRex、SIGMASYS C-NET > FS720
- 尺寸(W x H x D):134 x 134 x 43 mm
- 外部报警指示器:最大 1
- 颜色:Flame red,约 RAL 3000
