轴向电子设备风扇 San Ace 80L
冷却直流高压

轴向电子设备风扇 - San Ace 80L - SANYO DENKI EUROPE/日本山洋 - 冷却 / 直流 / 高压
轴向电子设备风扇 - San Ace 80L - SANYO DENKI EUROPE/日本山洋 - 冷却 / 直流 / 高压
添加到我的收藏夹
添加到产品对比表

产品规格型号

类型
轴向
功能
冷却
电源电压
直流
其他特性
工业, 高压
空气流量

3.42 m³/min
(120.776 ft³/min)

产品介绍

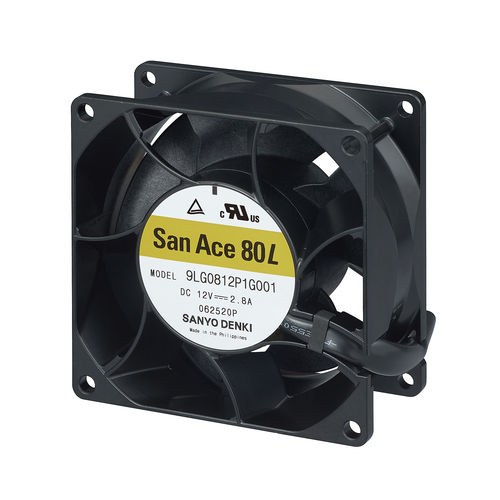

80 × 80 × 38 mm San Ace 80L 9LG type Long Life Fan that runs continuously for 100,000 hours while delivering the highest static pressure in the industry. It is ideal for machine tools, measuring equipment, control equipment, and telecom equipment Features 1. - High Static Pressure and High Airflow This fan achieves a maximum static pressure of 1260 Pa and maximum airflow of 3.42 m3/min, representing about 7.1-times and 1.6-times improvements over our current model, respectively. 2. - Long Service Life The fan operates continuously for 100,000 hours, or about 11 years. 3. - Low Power Consumption Power consumption has been reduced by about 32%, compared to the current model. 4. - Contribution to SDGs Made with lead-free brass, this fan complies with the RoHS Directive. It is also certified as an Eco Product for its use of environmentally friendly resources and technologies.

PDF产品目录

* 显示价格为参考价,此价格不含税、不含运费、不含关税,也不包含因安装或投入使用所产生的其他额外费用。参考价格可能因国家、原材料价格和汇率的不同而产生变化。
