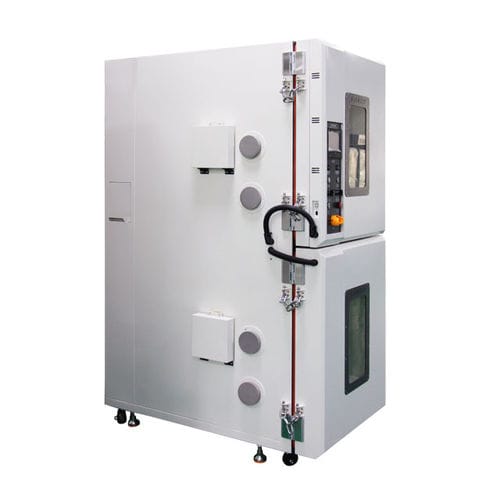

环境室 SM-G-5000-DA

温度环境用于环境模拟

Adopting throttle electronic expansion valve 1. The active control of the refrigeration system is realized, and the fixed proportional adjustment of the original thermal expansion valve is not controllable. The output can be adjusted in advance and optimized for different modes and operating conditions. 2. Due to the cyclic control feedback of the electronic expansion valve, the front end is a temperature-plus-pressure dual-sensor high-response direct control, which can provide the best evaporator liquid supply, so that the refrigeration system can achieve excellent cooling capacity in a wider working range. Output. 3. Energy saving: the full range of electronic expansion valve self-adjustment + active adaptation to adjust the cooling capacity output, making the system more energy efficient. 4. Energy-saving design: Adopting PID + PWM principle of VRF (refrigerant flow control) technology to achieve low-temperature energy-saving operation (electronic expansion valve according to thermal energy conditions refrigerant flow servo control technology) low temperature working state, the heater does not participate in the work, through PID + The PWM regulates the flow rate and flow direction of the refrigerant, and regulates the three-way flow of the refrigerant pipe, the cold bypass pipe, and the hot bypass pipe to achieve automatic constant temperature to the working chamber.
