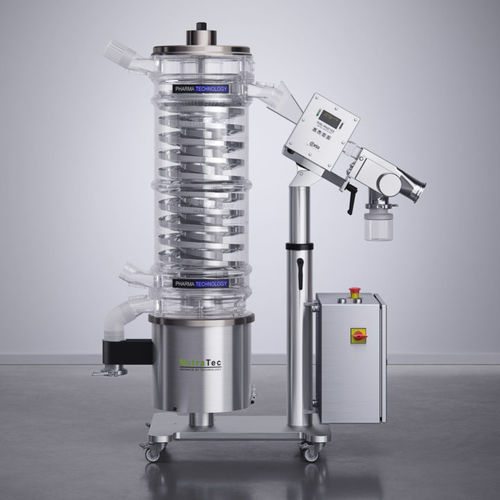

干式清洗机 NutraTec

自动工艺流程食品工业

产品概述
NutraTec 为提高效率与可用性而设计，是片剂除尘的简明解决方案。可与金属探测器和滚筒上料系统组合使用。不锈钢分段件适用于微片剂和泡腾片。

主要优点

• 持续高效的除尘，100% 排空
• 可选 CEIA 金属探测器
• 316L 不锈钢分段件，轻量且模块化
• 运行噪音 <70 dB(A)
• cGMP 设计，易于操作与清洗

设计与功能
316L 不锈钢分段螺旋与全透明罩板提供了耐用的结构并可直接观察片剂工艺。免工具的简化结构便于快速且简便的清洁与维护。加宽的环向除尘通道结合中央气流喷射，可在保持高产能的同时高效去除多余粉末。

参数 / 技术规格

• Packaging: Wooden Box
• Netto weight: 170 kg
• Floor Dimensions: 480 mm x 755 mm
• Inlet Height: 597 mm
• Elevation height: 500
• Available Metal Detector: Ceia THS/PH21 EE
• Outlet Chute: TC ASME BPE 2,5"
• Head Opening: 100 mm x 40 mm (CE)
• Accuracy Stainless Steel: 0,50 mm
• Accuracy Ferro: 0,30 mm
• Accuracy Non-Ferro: 0,35 mm
• Minimum Product Size: Ø 4 mm
• Maximum Product Size: Ø 25 mm
• Conveying Adjustment: Vibration Intensity
• Self Emptying: Yes
• Requested Air Extraction: Adjustable 150 - 200 m3/h - pressure drop 150 - 500 Pa
• Dust Extraction Connection: TC ISO 1127 DN50
• Requested Compressed Air: 40 - 80 l/min - Min. 4,5 bar
• Compressed Air connection: Ø 6 mm
• Power Supply: 110 V to 230 V ± 10 %
• Frequency: 50 Hz / 60 Hz
• Noise Level: <70 dB (A)
• Operating Temperature: 15 - 25 °C
• Maximum Relative Humidity: 60%
• Containment Level: Open design
• Inlet Chute: Flex Connect © (Ø56,3 mm)
• Non-Metallic Contact Parts: Tritan MX 711 - POM C - Silicone
• Metal Contact Parts: Stainless Steel 316L
• Contact Parts Finishing: Ra ≤ 0,8 µm
• Frame Parts: Stainless Steel 304
• Frame Finishing: Brushed 320
• Frame mounted on wheels: Yes
• IQ-OQ Protocol: Available
• Material Certificates: Available
• Function: Dedusting, Metal detection
• Product type: Tablet
• Application Area: Manufacturing
• Product Range: NutraRange
