步进式伺服电机 28BH47CA008IP直流集成编码和驱动器紧凑型
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 类型
- 直流, 步进式
- 构造
- 集成编码和驱动器, 紧凑型
- 应用
- 用于包装机, 用于传送带
- 其他特性
- CANopen, CANopen通信, 内置编码器, 集成控制器, 闭合回路
- 强度
最多: 3.2 A
最少: 0.2 A
- 扭矩
0.065 Nm
(0.047942 ft.lb)- 旋转速度
3,000 rpm
(18,849.5559 rad.min-1)- 直径
28 mm
(1.1 in)- 温度
最多: 40 °C
(104 °F)最少: 0 °C
(32 °F)
产品介绍
Overview
28BH47CA008IP 是一款紧凑型 CANopen 集成步进伺服，将电机、驱动器和编码器反馈集成在单一 28 mm（NEMA 11）外壳内。适用于小型自动化、输送和包装子系统，可简化电源与信号布线，并提供编码器反馈及主机可配置参数以便系统集成。
Key Highlights
Integrated Servo Overview (table)
Parameter — Value
Model No. — 28BH47CA008IP
Frame Size — 28 mm (NEMA 11)
Integrated Body Length — 47.2 mm
L Size — 32.2 mm
Shaft Diameter — 5 mm
Input Voltage Range — 9–36 VDC
Maximum Output Torque — 0.065 N·m
Communication — CANopen, TTL
Electrical, Feedback & Configuration (table)
Parameter — Value
Current Setting — 0.2–3.2 A software adjustable; factory-matched motor: 1.0 A
Encoder Feedback — 4096 lines (16,384 counts)
Phase Resistance — 2.1 Ω ±20%
Phase Inductance — 2.1 mH ±20%
Rotor Inertia — Approx. 9 g·cm²
Weight — Approx. 0.15 kg
Speed Range — Up to 3000 rpm
Microstep Setting — Host configuration; positive integer above 200; factory default 4000
Address Setting — Factory default 1; start address adjustable by host software
Protection — Over-voltage, under-voltage, over-current, winding open circuit and position deviation
Non-volatile Storage — Configuration parameters stored in internal MCU FLASH
Operating Temperature — 0°C to +40°C
Operating Humidity — 20% RH to 90% RH

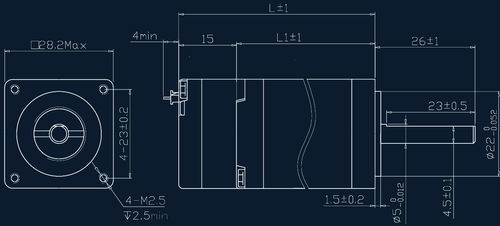

Mechanical Drawing
28 mm CANopen 集成步进伺服的机械图和尺寸图可用；图纸显示总体尺寸和安装细节。
