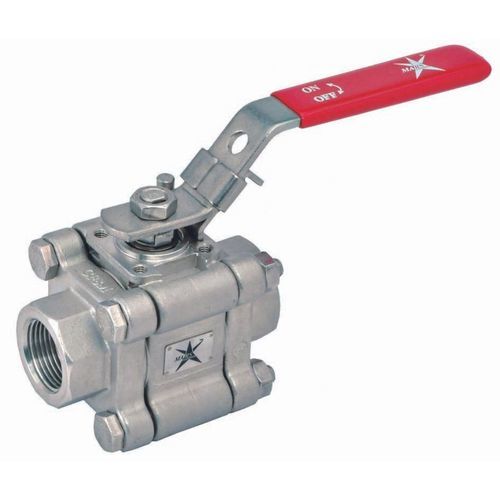

球形阀 83 series

手动制动3片式

概述
Series 83 是一系列 3 件式耐火球阀，提供 32 种不同尺寸和配置的变体。

产品概要

• 设计：3 件式，耐火结构
• 阀座：PTFE / RTFE
• 阀体材料：CF8M 和 WCB
• 通径选项：全通径和缩径
• 显示尺寸：1/4" 到 2"
• 压力等级：小尺寸最高可达 2000 PSI，部分大尺寸为 1500 PSI

型号 / 变体 (SKU | 尺寸 | 通径 | 阀体 | 压力等级 | 阀座 | 设计 | 价格)
V83-FS-1-4IN-FULL-PORT-CF8M | 1/4" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £33.73
V83-FS-1-4IN-FULL-PORT-WCB | 1/4" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.10
V83-FS-3-8IN-FULL-PORT-CF8M | 3/8" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £33.73
V83-FS-3-8IN-FULL-PORT-WCB | 3/8" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.10
V83-FS-1-2IN-FULL-PORT-CF8M | 1/2" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £36.50
V83-FS-1-2IN-FULL-PORT-WCB | 1/2" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £29.26
V83-FS-1-2IN-REDUCED-PORT-CF8M | 1/2" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £34.65
V83-FS-1-2IN-REDUCED-PORT-WCB | 1/2" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.87
V83-FS-3-4IN-FULL-PORT-CF8M | 3/4" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £44.81
V83-FS-3-4IN-FULL-PORT-WCB | 3/4" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £35.88
V83-FS-3-4IN-REDUCED-PORT-CF8M | 3/4" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £37.42
V83-FS-3-4IN-REDUCED-PORT-WCB | 3/4" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £30.03
V83-FS-1IN-FULL-PORT-CF8M | 1" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £58.67
V83-FS-1IN-FULL-PORT-WCB | 1" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £46.97
V83-FS-1IN-REDUCED-PORT-CF8M | 1" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £47.74
V83-FS-1IN-REDUCED-PORT-WCB | 1" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £38.50
V83-FS-1-1-4IN-FULL-PORT-CF8M | 1 1/4" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £81.93
V83-FS-1-1-4IN-FULL-PORT-WCB | 1 1/4" | Full | WCB | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £65.60
V83-FS-1-1-4IN-REDUCED-PORT-CF8M | 1 1/4" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £61.60
V83-FS-1-1-4IN-REDUCED-PORT-WCB | 1 1/4" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £49.13
V83-FS-1-1-2IN-FULL-PORT-CF8M | 1 1/2" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £116.89
V83-FS-1-1-2IN-FULL-PORT-WCB | 1 1/2" | Full | WCB | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £88.70
V83-FS-1-1-2IN-REDUCED-PORT-CF8M | 1 1/2" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £92.25
V83-FS-1-1-2IN-REDUCED-PORT-WCB | 1 1/2" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £70.22
V83-FS-2IN-FULL-PORT-CF8M | 2" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £156.16

备注
• 所示价格为页面列出的单个变体价格（货币 GBP）。
• 在多种尺寸和通径类型中提供 CF8M 和 WCB 阀体选项。
