激光切割机 iqiege®7160S

刀具用于陶瓷用于合成材料

I. Overview

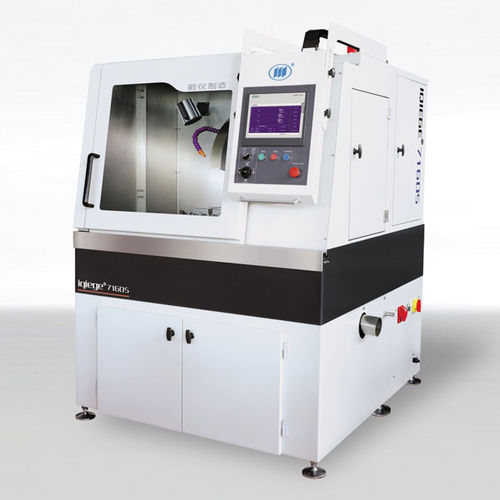

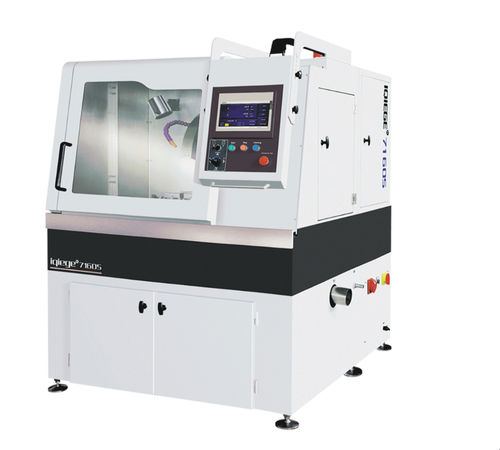

IQIEGE 7160S 是一款面向高端实验室及质检部门的大型全自动金相切割机，适用于处理大型或复杂试样。该机搭载 Siemens PLC 与触摸屏人机界面，并配备高精度步进电机驱动，实现精确进给控制与可靠运行。设备配备1240 mm × 780 mm超大切割室与7.5 kW驱动，能够切割大型、高硬度的金属及非金属材料（如大型铸件、复合材料、陶瓷及岩相试样）。

系统具有智能切割逻辑，可根据电流反馈自动调节进给速度，在处理昂贵或难切材料时降低报废率。参数数据库支持最多10组参数存储，便于批量处理与工艺复现。

II. Main Technical Specifications
Cutting method: Chopping cut, push-cut, interactive cut
Feed method: Continuous feed, pulse feed
Cutting speed: 0.03–1 mm/s (adjustment step: 0.01)
Variable-frequency spindle speed: 500–2,300 rpm
Maximum travel distance: Z-axis 220 mm; Y-axis 200 mm; X-axis 240 mm
Cutting chamber dimensions: 1,240 mm × 780 mm
Maximum Cutting Diameter: Φ160 mm
Cutting power: 7.5 kW
Power supply: Three-phase 380V/50Hz
External dimensions (L×W×H): 1,300 mm (1,675 mm when door open) × 1,560 mm × 1,880 mm

特性 / 规格

• Model: IQIEGE 7160S (iqiege®7160S)
• Control: Siemens PLC with touch-screen human–machine interface
• Drive: High-precision stepper motor drives for accurate feed control
• Cutting chamber: Ultra-large 1,240 mm × 780 mm suitable for oversized specimens
• Cutting methods supported: Chopping cut, push-cut, interactive cut
• Feed modes: Continuous feed, pulse feed
• Cutting speed range: 0.03–1 mm/s (adjust step: 0.01)
• Spindle speed (variable-frequency): 500–2,300 rpm
• Maximum travel distances: Z 220 mm; Y 200 mm; X 240 mm
• Maximum cutting diameter: Φ160 mm
• Cutting power: 7.5 kW
• Power requirement: Three-phase 380V/50Hz
• Intelligent cutting logic: Automatic feed-rate adjustment based on current feedback to reduce scrap
• Parameter storage: Database for up to 10 parameter sets to support batch processing
• Application: For metallic and non-metallic materials (ceramics, petrographic, composites); suited to high-precision sampling of large, complex or high-hardness specimens
• External dimensions (L×W×H): 1,300 mm (1,675 mm with door open) × 1,560 mm × 1,880 mm
