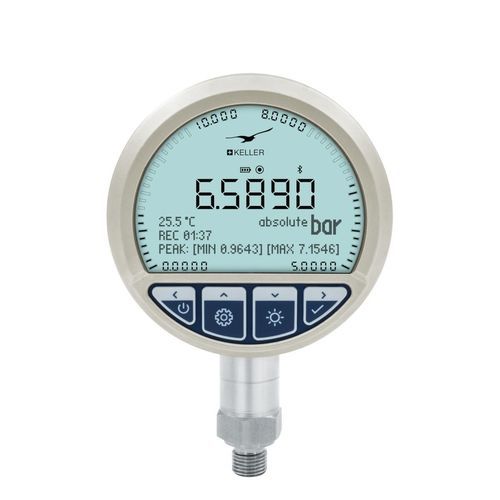

绝对压力计 LEO Ultimate

相对数字电子

Product Description
The LEO Ultimate digital pressure gauge is a high-precision measuring instrument designed for demanding applications in calibration, service and industry. It combines piezoresistive measurement technology with advanced analysis functions, enabling both absolute and relative pressure measurements in a single device. Thanks to the integrated barometer, it is possible to switch between the two pressure types at any time without the need for additional sensors. The various measurement modes enable the analysis of static and dynamic pressure profiles as well as leakage tests. The device includes a data logger function for recording over extended periods. Parameterisation and data retrieval are carried out via USB-C or wirelessly via Bluetooth. In combination with the PressureSuite software, measurement data can be visualised and documented. The robust metal housing with IP67 protection and an easy-to-read display allow the device to be used under demanding environmental conditions.

Main features

• Integrated barometer enabling absolute and relative pressure measurement without additional sensors
• Piezoresistive measurement technology with advanced analysis functions
• Measurement modes for static and dynamic pressure profiles and leakage tests
• Built-in data logger for long-term recordings
• Parameterisation and data retrieval via USB-C or Bluetooth BLE
• Robust metal housing with IP67 protection and easy-to-read display
• Designed for calibration, service and industrial applications

Caractéristiques / spécifications techniques

• Pressure ranges: -1...1 to 0…1000 bar (also shown as -15…15 bis 0…15000 psi)
• Accuracy: ±0.05 %FS (optional ±0.01 %FS)
• Total Error Band: ±0.05 %FS @ 0…50 °C
• Interfaces: USB 2.0 (USB-C) and Bluetooth BLE
• Special characteristics: High-precision reference instrument; integrated barometer; measurement modes for static/dynamic profiles; leakage tests; data logger; robust metal housing with IP67 protection
