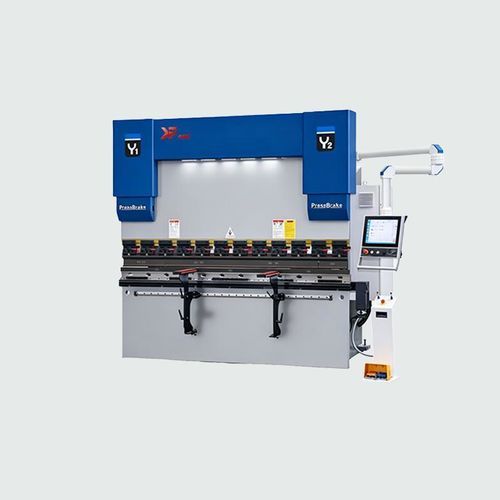

伺服液压压弯机 KTP series

CNC数控自动大功率

简要说明

• FOB价格：US $0.5 - 9,999 / 件

1. CNC系统
TP10S为折弯机定制的10英寸触摸屏CNC控制器。采用CAN总线驱动，定位精度高且线缆简洁。输入板厚和弯曲角度后，系统可自动计算弯曲深度和展开尺寸。内置挠度和角度补偿，保证加工件尺寸稳定。支持多轴扩展、多步圆弧弯曲，具备大容量程序存储和生产统计功能，便于工艺管理。

2. 高品质扭力轴同步结构
扭力轴采用锻造与打磨工艺，轴体强度高、弹性良好，设计可调以实现滑块同步运动。

3. 电气系统
配备安全互锁，开门切断电源。采用高性能伺服驱动器及Schneider Electric电气元件，确保控制可靠性。

4. 液压系统
主动力选用国内一线品牌电机，配合高品质油缸和优质液压元件，油压系统耐用，寿命长。

技术参数表
Type | Nominal Force (KN) | Worktable Length (mm) | Poles Distance (mm) | Throat Depth (mm) | Slider Travel (mm) | Max Open (mm) | Power (kW) | Dimension LxWxH (mm)
KTP40T/1600 | 400 | 1600 | 1200 | 200 | 100 | 320 | 5.5 | 1800x1200x1800
KTP40T/2000 | 400 | 2000 | 1600 | 200 | 100 | 320 | 5.5 | 2300x1280x2100
KTP50T/2500 | 500 | 2500 | 1900 | 200 | 100 | 320 | 5.5 | 2850x1800x2200
KTP63T/2500 | 630 | 2500 | 1960 | 250 | 120 | 345 | 5.5 | 2850x1800x2300
KTP63T/3200 | 630 | 3200 | 2600 | 250 | 120 | 345 | 5.5 | 3500x1800x2300
KTP80T/2500 | 800 | 2500 | 1960 | 250 | 120 | 350 | 5.5 | 2900x1800x2350
KTP80T/3200 | 800 | 3200 | 2600 | 250 | 120 | 350 | 5.5 | 3700x1800x2400
KTP80T/4000 | 800 | 4000 | 3200 | 250 | 120 | 350 | 5.5 | 4300x1800x2400
KTP100T/2500 | 1000 | 2500 | 1960 | 320 | 120 | 380 | 7.5 | 2900x1800x2450
KTP100T/3200 | 1000 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3800x1800x2500
KTP100T/4000 | 1000 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 4400x1800x2500
KTP125T/2500 | 1250 | 2500 | 1960 | 320 | 120 | 380 | 7.5 | 3000x1800x2500
KTP125T/3200 | 1250 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3800x1850x2500
KTP125T/4000 | 1250 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 4400x1850x2500
KTP160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 450 | 11 | 3900x1900x2650
KTP160T/4000 | 1600 | 4000 | 3200 | 320 | 200 | 450 | 11 | 4500x1900x2650
KTP160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 450 | 11 | 5500x2000x2700
KTP160T/6000 | 1600 | 6000 | 4800 | 320 | 200 | 450 | 11 | 6500x2000x3100
KTP200T/3200 | 2000 | 3200 | 2600 | 350 | 250 | 500 | 15 | 3900x2000x2650
KTP200T/4000 | 2000 | 4000 | 3200 | 350 | 250 | 500 | 15 | 4500x2000x2700
KTP200T/5000 | 2000 | 5000 | 4000 | 350 | 250 | 500 | 15 | 5500x2000x2700
KTP200T/6000 | 2000 | 6000 | 4800 | 350 | 250 | 500 | 15 | 6500x2000x2800
KTP250T/3200 | 2500 | 3200 | 2600 | 350 | 250 | 520 | 18.5 | 3900x2050x2850
KTP250T/4000 | 2500 | 4000 | 3200 | 350 | 250 | 520 | 18.5 | 4500x2050x2850
KTP250T/5000 | 2500 | 5000 | 4000 | 350 | 250 | 520 | 18.5 | 5500x2050x2850
KTP250T/6000 | 2500 | 6000 | 4800 | 400 | 250 | 520 | 18.5 | 6500x2150x2900
KTP300T/3200 | 3000 | 3200 | 2600 | 400 | 250 | 520 | 22 | 4000x2100x2980
KTP300T/4000 | 3000 | 4000 | 3200 | 400 | 250 | 520 | 22 | 4500x2100x2980
KTP300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 520 | 22 | 5500x2150x2980
KTP300T/6000 | 3000 | 6000 | 4800 | 400 | 250 | 520 | 22 | 6500x2150x2980
KTP400T/4000 | 4000 | 4000 | 3200 | 400 | 250 | 540 | 30 | 4500x2300x3450
KTP400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 540 | 30 | 5500x2300x3450
KTP400T/6000 | 4000 | 6000 | 4800 | 400 | 250 | 540 | 30 | 6500x2300x3500
KTP500T/4000 | 5000 | 4000 | 3200 | 400 | 300 | 620 | 37 | 4500x2450x3600
KTP500T/5000 | 5000 | 5000 | 4000 | 400 | 300 | 620 | 37 | 5500x2450x3600
KTP500T/6000 | 5000 | 6000 | 4800 | 400 | 300 | 620 | 37 | 6500x2500x3700
KTP600T/4000 | 6000 | 4000 | 3200 | 400 | 300 | 620 | 45 | 4500x2500x3700
KTP600T/6000 | 6000 | 6000 | 4800 | 400 | 300 | 620 | 45 | 6500x2600x3800

技术规格 / 关键要点

• CNC控制：TP10S 10英寸触摸屏，CAN总线，自动计算弯曲深度和展开尺寸，挠度与角度补偿，多轴扩展与多步圆弧弯曲，大容量程序与生产统计。
• 扭力轴：锻造打磨轴体，提供高强度、良好弹性和同步运行的可调性。
• 电气：伺服驱动与Schneider Electric元件；安全互锁（开门切断电源）。
• 液压：高品质国内电机、油缸及液压元件，保证耐久性。
• 型号范围：KTP系列约400 kN至6000 kN，工作台长度1600–6000 mm，功率5.5–45 kW；详情见上表。
