通气塞子 JDAE-ES series

六角形螺纹公端

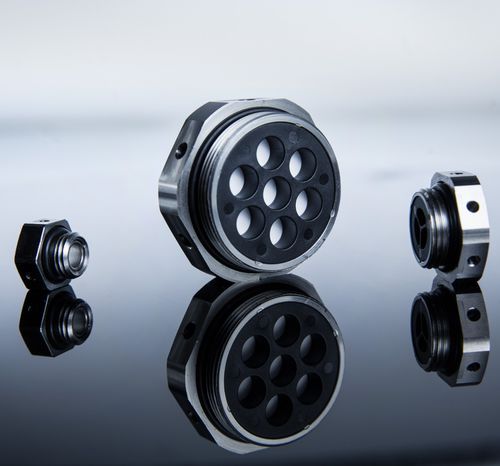

Venting element JDAE made of stainless steel Waterproof enclosures with protection grades IP67 or IP68 for outdoor use are not automatically sealed against vapour and humid air. To avoid negative pressure, high humidity and condensation inside the enclosure a continuous Ventilation and pressure equilibrium is necessary. This function can be achieved by using a venting element made by Jacob. Features: - Continuous ventilation and adaptaion on the inner pressure - Hydrophobic and oleophobic PES- membrane - Body from stainless steel 1.4305 - Theoretical air flow through usable surface up to 75 l/h at Delta-p = 0,07 bar - Water entry pressure >= 0,83 bar (dynamic WEP, 30 seconds) - Temperature range -40°C / +100°C - Protection grade IP66 / IP68 - 0,6 bar (60 min.) / IP69
