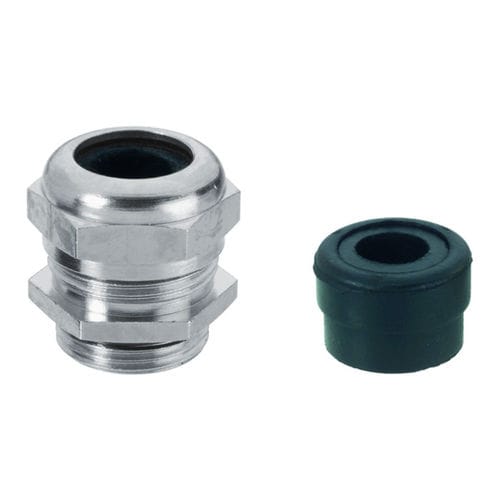

镀镍黄铜电缆接头 WADI one metric K150-1xxx-zzIP68IP69K
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 材料
- 镀镍黄铜
- 保护水平
- IP68, IP69K
- 线缆直径
最少: 3 mm
(0.12 in)最多: 53 mm
(2.09 in)- 螺纹直径
最少: 12 mm
(0.47 in)最多: 63 mm
(2.48 in)- 可用温度
最少: -40 °C
(-40 °F)最多: 100 °C
(212 °F)
产品介绍
The WADI one cable gland made of nickel-plated brass is the perfect cable entry solution for demanding applications.
Features:
- large-area sealing protects the cable
- integrated anchorage with high retention
- wide sealing and clamping range
- for cables from 3 to 53 mm
- the inner sealing ring can be removed easily for larger cables
- high UV, ozone and weather resistancy
- temperature range -40 °C / +100 °C (dynamic)
- protection grade IP 66 / IP68 - 10 bar (30 min.) / IP69
- material of sealing insert fulfils UL 94 HB
- with metric thread from M12 to M63
