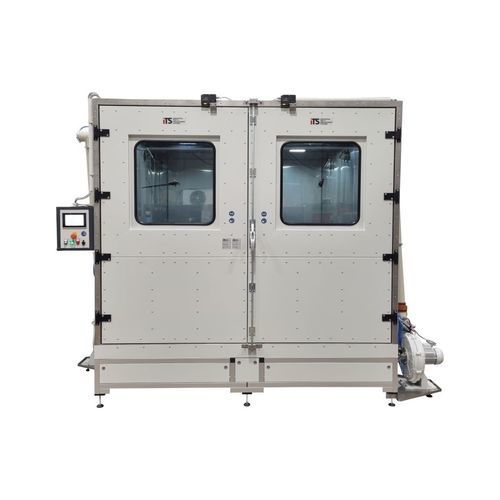

防尘密封试验箱 SK-XL气候环境砂子
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 类型
- 气候
- 测试类型
- 环境, 防尘密封, 砂子
- 应用产品
- 用于电子设备, 电池, 热泵用
- 应用领域
- 用于欧洲标准, 用于国际标准
- 配置
- 落地, 步入式, 模块化
- 光源类型
- LED式
- 门数量
- 单门, 双门
- 箱体材料
- 不锈钢
- 选项和配件
- 触摸屏控制, PLC控制
- 其他特性
- 自动
- 长度
2,600 mm
(102.36 in)- 宽度
2,250 mm
(88.6 in)- 深度
2,000 mm
(79 in)
产品介绍
Description
The SK series dust chambers meet the following national and international standards:
The SK series dust test chambers offer a fully automated solution for conducting dust exposure tests. The vacuum system for tests according to DIN EN 60529 is fully automated. The chamber regulates the vacuum to 20 mbar and automatically determines the test duration.
Technical information (table)
Test chamber dimensions (W x D x H) [mm] : 2600 x 3600 x 2000
Door opening W x H [mm] : 2400 x 1900
Number of doors with 1 windshield wiper : 2
Viewing window size W x H [mm] : 2 windows: each 710 x 680
External dimensions W x D x H [mm] : 3800 x 3700 x 2500
Chamber weight [kg] : 3000
Number of dust blowers : 6
Number of vacuum devices : 1
Test room lighting : Yes / LED
Cable entry [number / diameter mm] : after voting
Load capacity test grid [kg] : Max. 1000 / (Distribution: 500 kg/m²)
Control panel position : exclusive links
Caractéristiques / spécifications techniques
The SK series dust chambers meet the following national and international standards:
- IEC 60529:1989 + A1:1999 + A2:2013
- ISO 20653
- EN 60068-2-18
- JIS 207D
- IEC 60598-1
- L.V. 124
- GS 95003-4
- MIL STD 810G (Special Cabin)
The SK series dust test chambers offer a fully automated solution for conducting dust exposure tests. The vacuum system for tests according to DIN EN 60529 is fully automated. The chamber regulates the vacuum to 20 mbar and automatically determines the test duration.
Technical information (table)
Test chamber dimensions (W x D x H) [mm] : 2600 x 3600 x 2000
Door opening W x H [mm] : 2400 x 1900
Number of doors with 1 windshield wiper : 2
Viewing window size W x H [mm] : 2 windows: each 710 x 680
External dimensions W x D x H [mm] : 3800 x 3700 x 2500
Chamber weight [kg] : 3000
Number of dust blowers : 6
Number of vacuum devices : 1
Test room lighting : Yes / LED
Cable entry [number / diameter mm] : after voting
Load capacity test grid [kg] : Max. 1000 / (Distribution: 500 kg/m²)
Control panel position : exclusive links
Caractéristiques / spécifications techniques
- Brand: iTS GmbH
- Item number (SKU): 14623
- Category: Dust chambers
- Series / Model family: SK-XL
- Test chamber internal dimensions (W x D x H): 2600 x 3600 x 2000 mm
- External dimensions (W x D x H): 3800 x 3700 x 2500 mm
- Door opening (W x H): 2400 x 1900 mm
- Viewing windows: 2 windows, each 710 x 680 mm
- Number of doors with windshield wiper: 2
- Chamber weight: 3000 kg
- Number of dust blowers: 6
- Number of vacuum devices: 1 (vacuum regulated to 20 mbar for DIN EN 60529 tests)
- Test room lighting: LED
- Load capacity test grid: Max. 1000 kg (distribution: 500 kg/m²)
- Cable entry: after voting
- Control panel position: exclusive links
