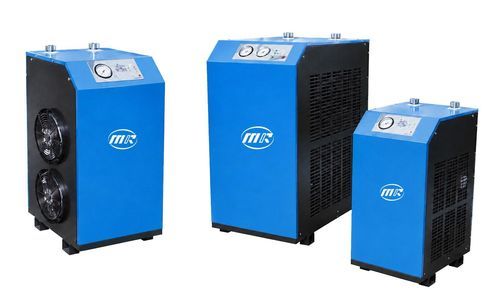

冷却压缩空气干燥机 KD series紧凑型
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 所用技术
- 冷却
- 其他特性
- 紧凑型
- 流量
最多: 810 m³/h
(28,604.88 ft³/h)最少: 42 m³/h
(1,483.22 ft³/h)- 压力
最多: 2.3 MPa
最少: 0.2 MPa
- 发动机功率
最多: 2.52 kW
(3.43 hp)最少: 0.45 kW
(0.61 hp)- 重量
最多: 190 kg
(418.9 lb)最少: 30 kg
(66.1 lb)
产品介绍
产品概述
KD Compact 系列用于低至中等压缩空气流量的冷凝水排除。仅发布经确认的流量、功率、连接、尺寸和重量数据；BD 系列的压力和入口温度限制不适用于这些型号。
工作原理与产品特点
主要技术规格
型号与规格 — KDL 紧凑型子系列（表）
Model | Flow (m³/min) | Flow (m³/h) | Flow (CFM) | Power (kW) | Connection | Dimensions L×W×H (mm) | Weight (kg)
KDL-5F | 0.7 | 42 | 25 | 0.45 | 1/2 in | 500 × 415 × 640 | 30
KDL-10F | 1.6 | 96 | 56 | 0.47 | 1 in | 500 × 415 × 680 | 45
KDL-20F | 2.6 | 156 | 92 | 0.85 | 1 in | 630 × 450 × 790 | 50
KDL-30F | 3.8 | 228 | 134 | 1.04 | 1 in | 630 × 450 × 790 | 55
KDL-50F | 6.0 | 360 | 212 | 1.65 | 1-1/2 in | 770 × 530 × 890 | 70
KDL-60F | 7.0 | 420 | 247 | 1.65 | 1-1/2 in | 820 × 530 × 890 | 80
KDL-75F | 8.5 | 510 | 300 | 1.67 | 1-1/2 in | 870 × 580 × 890 | 90
KDL-100F | 11.5 | 690 | 406 | 2.05 | 2 in | 900 × 580 × 870 | 120
KDL-120F | 13.5 | 810 | 476 | 2.30 | 2 in | 950 × 730 × 1130 | 140
型号与规格 — KDH 紧凑型子系列（表）
Model | Flow (m³/min) | Flow (m³/h) | Flow (CFM) | Power (kW) | Connection | Dimensions L×W×H (mm) | Weight (kg)
KDH-5F | 0.7 | 42 | 25 | 0.47 | 1/2 in | 500 × 415 × 830 | 35
KDH-10F | 1.6 | 96 | 56 | 0.53 | 1 in | 500 × 415 × 880 | 50
KDH-20F | 2.6 | 156 | 92 | 0.95 | 1 in | 630 × 450 × 1010 | 55
KDH-30F | 3.8 | 228 | 134 | 1.16 | 1 in | 630 × 450 × 1010 | 60
KDH-50F | 6.0 | 360 | 212 | 1.65 | 1-1/2 in | 770 × 530 × 1070 | 70
KDH-60F | 7.0 | 420 | 247 | 1.65 | 1-1/2 in | 820 × 530 × 1070 | 85
KDH-75F | 8.5 | 510 | 300 | 1.80 | 1-1/2 in | 870 × 580 × 1180 | 110
KDH-100F | 11.5 | 690 | 406 | 2.30 | 2 in | 1180 × 580 × 1110 | 150
KDH-120F | 13.5 | 810 | 476 | 2.52 | 2 in | 1250 × 730 × 1230 | 190
适用场景
在公布的流量与连接范围内对压缩空气进行预处理。
相关产品
技术规格（简明列表）
KD Compact 系列用于低至中等压缩空气流量的冷凝水排除。仅发布经确认的流量、功率、连接、尺寸和重量数据；BD 系列的压力和入口温度限制不适用于这些型号。
工作原理与产品特点
- 为避免型号和规格混淆，KDL 与 KDH 子系列分别以独立表格展示。
- BSP 连接范围：1/2–2 in。
主要技术规格
- 额定流量范围：0.7–13.5 m³/min
- 连接范围：BSP 1/2–2 in
- 子系列：KDL / KDH
型号与规格 — KDL 紧凑型子系列（表）
Model | Flow (m³/min) | Flow (m³/h) | Flow (CFM) | Power (kW) | Connection | Dimensions L×W×H (mm) | Weight (kg)
KDL-5F | 0.7 | 42 | 25 | 0.45 | 1/2 in | 500 × 415 × 640 | 30
KDL-10F | 1.6 | 96 | 56 | 0.47 | 1 in | 500 × 415 × 680 | 45
KDL-20F | 2.6 | 156 | 92 | 0.85 | 1 in | 630 × 450 × 790 | 50
KDL-30F | 3.8 | 228 | 134 | 1.04 | 1 in | 630 × 450 × 790 | 55
KDL-50F | 6.0 | 360 | 212 | 1.65 | 1-1/2 in | 770 × 530 × 890 | 70
KDL-60F | 7.0 | 420 | 247 | 1.65 | 1-1/2 in | 820 × 530 × 890 | 80
KDL-75F | 8.5 | 510 | 300 | 1.67 | 1-1/2 in | 870 × 580 × 890 | 90
KDL-100F | 11.5 | 690 | 406 | 2.05 | 2 in | 900 × 580 × 870 | 120
KDL-120F | 13.5 | 810 | 476 | 2.30 | 2 in | 950 × 730 × 1130 | 140
型号与规格 — KDH 紧凑型子系列（表）
Model | Flow (m³/min) | Flow (m³/h) | Flow (CFM) | Power (kW) | Connection | Dimensions L×W×H (mm) | Weight (kg)
KDH-5F | 0.7 | 42 | 25 | 0.47 | 1/2 in | 500 × 415 × 830 | 35
KDH-10F | 1.6 | 96 | 56 | 0.53 | 1 in | 500 × 415 × 880 | 50
KDH-20F | 2.6 | 156 | 92 | 0.95 | 1 in | 630 × 450 × 1010 | 55
KDH-30F | 3.8 | 228 | 134 | 1.16 | 1 in | 630 × 450 × 1010 | 60
KDH-50F | 6.0 | 360 | 212 | 1.65 | 1-1/2 in | 770 × 530 × 1070 | 70
KDH-60F | 7.0 | 420 | 247 | 1.65 | 1-1/2 in | 820 × 530 × 1070 | 85
KDH-75F | 8.5 | 510 | 300 | 1.80 | 1-1/2 in | 870 × 580 × 1180 | 110
KDH-100F | 11.5 | 690 | 406 | 2.30 | 2 in | 1180 × 580 × 1110 | 150
KDH-120F | 13.5 | 810 | 476 | 2.52 | 2 in | 1250 × 730 × 1230 | 190
适用场景
在公布的流量与连接范围内对压缩空气进行预处理。
相关产品
- BD Series
- KD Medium Air-Cooled Series
- KDL/KDH Water-Cooled Series
技术规格（简明列表）
- 额定流量范围：0.7–13.5 m³/min
- 连接范围：BSP 1/2–2 in
- 子系列：KDL / KDH
- KDL-5F — Flow: 0.7 m³/min; 42 m³/h; 25 CFM; Power: 0.45 kW; Connection: 1/2 in; Dimensions: 500 × 415 × 640 mm; Weight: 30 kg
- KDL-10F — Flow: 1.6 m³/min; 96 m³/h; 56 CFM; Power: 0.47 kW; Connection: 1 in; Dimensions: 500 × 415 × 680 mm; Weight: 45 kg
- KDL-20F — Flow: 2.6 m³/min; 156 m³/h; 92 CFM; Power: 0.85 kW; Connection: 1 in; Dimensions: 630 × 450 × 790 mm; Weight: 50 kg
- KDL-30F — Flow: 3.8 m³/min; 228 m³/h; 134 CFM; Power: 1.04 kW; Connection: 1 in; Dimensions: 630 × 450 × 790 mm; Weight: 55 kg
- KDL-50F — Flow: 6.0 m³/min; 360 m³/h; 212 CFM; Power: 1.65 kW; Connection: 1-1/2 in; Dimensions: 770 × 530 × 890 mm; Weight: 70 kg
- KDL-60F — Flow: 7.0 m³/min; 420 m³/h; 247 CFM; Power: 1.65 kW; Connection: 1-1/2 in; Dimensions: 820 × 530 × 890 mm; Weight: 80 kg
- KDL-75F — Flow: 8.5 m³/min; 510 m³/h; 300 CFM; Power: 1.67 kW; Connection: 1-1/2 in; Dimensions: 870 × 580 × 890 mm; Weight: 90 kg
- KDL-100F — Flow: 11.5 m³/min; 690 m³/h; 406 CFM; Power: 2.05 kW; Connection: 2 in; Dimensions: 900 × 580 × 870 mm; Weight: 120 kg
- KDL-120F — Flow: 13.5 m³/min; 810 m³/h; 476 CFM; Power: 2.30 kW; Connection: 2 in; Dimensions: 950 × 730 × 1130 mm; Weight: 140 kg
- KDH-5F — Flow: 0.7 m³/min; 42 m³/h; 25 CFM; Power: 0.47 kW; Connection: 1/2 in; Dimensions: 500 × 415 × 830 mm; Weight: 35 kg
- KDH-10F — Flow: 1.6 m³/min; 96 m³/h; 56 CFM; Power: 0.53 kW; Connection: 1 in; Dimensions: 500 × 415 × 880 mm; Weight: 50 kg
- KDH-20F — Flow: 2.6 m³/min; 156 m³/h; 92 CFM; Power: 0.95 kW; Connection: 1 in; Dimensions: 630 × 450 × 1010 mm; Weight: 55 kg
- KDH-30F — Flow: 3.8 m³/min; 228 m³/h; 134 CFM; Power: 1.16 kW; Connection: 1 in; Dimensions: 630 × 450 × 1010 mm; Weight: 60 kg
- KDH-50F — Flow: 6.0 m³/min; 360 m³/h; 212 CFM; Power: 1.65 kW; Connection: 1-1/2 in; Dimensions: 770 × 530 × 1070 mm; Weight: 70 kg
- KDH-60F — Flow: 7.0 m³/min; 420 m³/h; 247 CFM; Power: 1.65 kW; Connection: 1-1/2 in; Dimensions: 820 × 530 × 1070 mm; Weight: 85 kg
- KDH-75F — Flow: 8.5 m³/min; 510 m³/h; 300 CFM; Power: 1.80 kW; Connection: 1-1/2 in; Dimensions: 870 × 580 × 1180 mm; Weight: 110 kg
- KDH-100F — Flow: 11.5 m³/min; 690 m³/h; 406 CFM; Power: 2.30 kW; Connection: 2 in; Dimensions: 1180 × 580 × 1110 mm; Weight: 150 kg
- KDH-120F — Flow: 13.5 m³/min; 810 m³/h; 476 CFM; Power: 2.52 kW; Connection: 2 in; Dimensions: 1250 × 730 × 1230 mm; Weight: 190 kg
