球心截止阀 S40
气动制动用于水

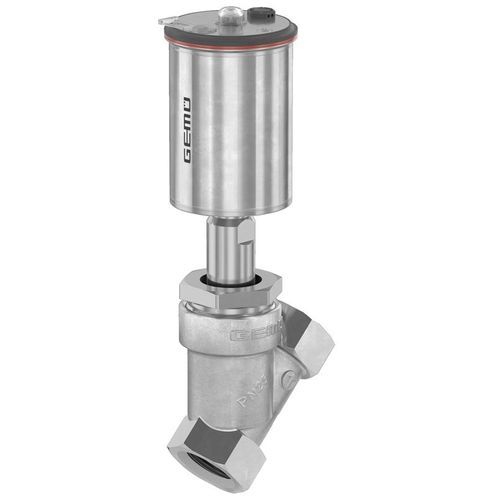

球心截止阀 - S40 - GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG - 气动 / 制动 / 用于水

球心截止阀 - S40 - GEMÜ Gebrüder Müller Apparatebau GmbH & Co. KG - 气动 / 制动 / 用于水 - 图像 - 2

添加到我的收藏夹

添加到产品对比表

产品规格型号

种类

球心截止

驱动类型

气动

功能

制动

介质

用于水, 用于气体

主体材料

法兰, 螺纹, 斜座阀, 直线型

应用

工业, 用于真空

材质

不锈钢

流体规格

用于粘性流体

其他特性

ISO, DIN, ANSI, 耐腐蚀, 双效, 常开, 结实耐用型, ATEX

通径

最多: 100 mm
(3.937 in)

最少: 6 mm
(0.236 in)

压力

最多: 40 bar
(580.2 psi)

最少: 0 bar
(0 psi)

温度

最多: 185 °C
(365 °F)

最少: -40 °C
(-40 °F)

产品介绍

Universal stainless steel globe valve

The pneumatically actuated GEMÜ S40 globe valve is designed for use in industrial applications and has body shapes such as angled and straight seat bodies. The valve spindle is sealed by a self-adjusting sealing element; this ensures low-maintenance and reliable sealing even after a long service life. Normally Closed, Normally Open and Double Acting control functions are available.

Suitable for shut-off and control functions for gaseous, liquid and viscous media
For contact with food in accordance with Regulation (EC) No. 1935/2004 and FDA-compliant
All sealing components can be replaced
Top-mounted control connections with position indicator and sight glass
Robust stainless steel actuator resistant to corrosive ambient conditions
Suitable for vacuum up to 10 mbar (a) as standard
Optionally available with USP Class VI, oxygen approval and ATEX
