智能型阀门定位器 1441 cPos-X电控气动线性直角回转
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 类型
- 电控气动
- 位移形式
- 线性, 直角回转
- 配置
- 双作用, 单作用
- 防护等级
- IP65
- 其他特性
- 球形阀用, 数字, 智能型
- 压力
最多: 7 bar
(101.5 psi)最少: 1.5 bar
(21.8 psi)- 环境温度
最多: 60 °C
(140 °F)最少: -10 °C
(14 °F)- 旋转角度
最多: 90 grad
最少: 0 grad
产品介绍
Two-wire positioner for explosion-proof areas

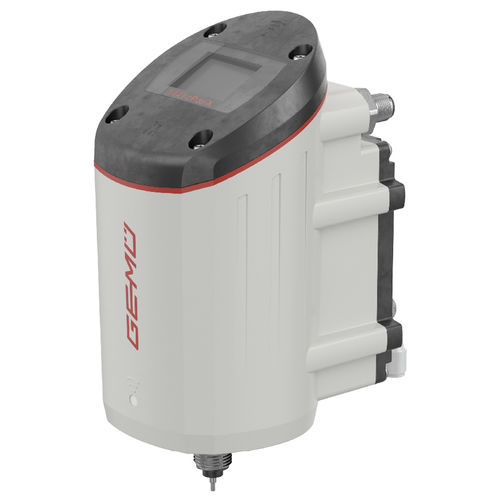

The GEMÜ 1441 cPos-X is an intelligent, digital electro-pneumatic positioner in 2-wire technology used to control pneumatically operated process valves. It can be combined with single acting or double acting linear actuators or quarter turn actuators. This means that it can be used, among other things, for diaphragm, globe and diaphragm globe valves as well as for ball valves and butterfly valves, for instance. The positioner has a robust housing with a covered LCD display for status information. The positioner can be operated remotely using a mobile device in order to configure settings and to view detailed information.
The GEMÜ 1441 cPos-X is an intelligent, digital electro-pneumatic positioner in 2-wire technology used to control pneumatically operated process valves. It can be combined with single acting or double acting linear actuators or quarter turn actuators. This means that it can be used, among other things, for diaphragm, globe and diaphragm globe valves as well as for ball valves and butterfly valves, for instance. The positioner has a robust housing with a covered LCD display for status information. The positioner can be operated remotely using a mobile device in order to configure settings and to view detailed information.
- 2-wire-connection technology
- Quick commissioning using well-balanced preconfiguration
- HART communication available upon request
- Fail safe and Fail freeze safety function available
- BLE communication for remote access and configuration
- Almost no air consumption when idle
