球形阀 S717手动调节用于气体
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 球形
- 驱动类型
- 手动
- 功能
- 调节
- 介质
- 用于气体
- 主体材料
- 法兰, 螺纹
- 材质
- PTFE, EPDM
- 通道数量
- 2位2通
- 其他特性
- DIN
- 通径
最少: 10 mm
(0.394 in)最多: 100 mm
(3.937 in)- 压力
最少: 0 bar
(0 psi)最多: 16 bar
(232.1 psi)- 温度
最少: 0 °C
(32 °F)最多: 60 °C
(140 °F)
产品介绍
Robust, versatile and easy-to-operate ball valve

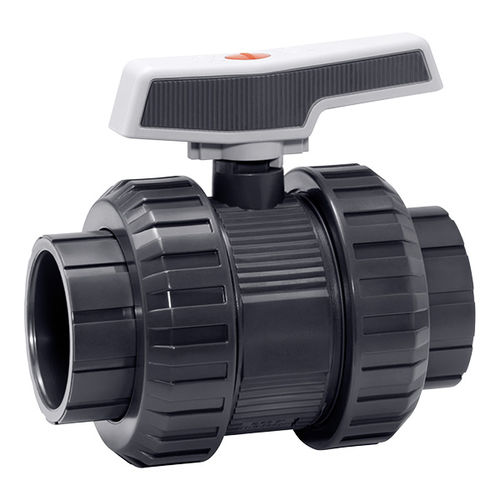

GEMÜ S717 is a 2/2-way plastic ball valve available in sizes DN 10 to 100. It is equipped with a plastic manual actuator. The seat seal is made from PTFE and the O-ring seals can be made from either EPDM or FKM.The product is designed for use in piping. It controls a flowing medium by manual operation.
GEMÜ S717 is a 2/2-way plastic ball valve available in sizes DN 10 to 100. It is equipped with a plastic manual actuator. The seat seal is made from PTFE and the O-ring seals can be made from either EPDM or FKM.The product is designed for use in piping. It controls a flowing medium by manual operation.
- Flexible use in the pipework system
- Simple installation
- Durable
- Grip can be used as a regulating key
