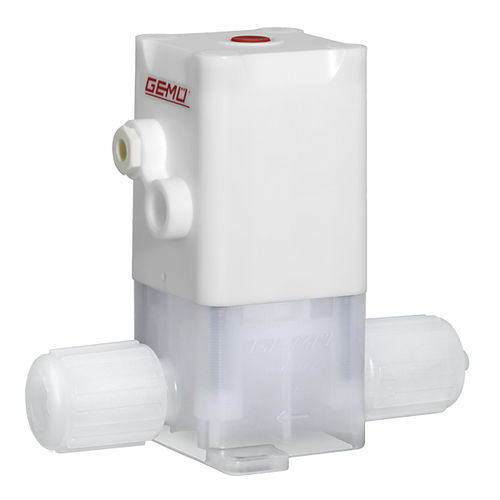

隔膜阀 C50气动分配用于酸
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 种类
- 隔膜
- 驱动类型
- 气动
- 功能
- 分配
- 介质
- 用于酸, 用于溶剂
- 应用
- 工业用途, 化学, 半导体工业, OEM
- 材质
- 塑料, PTFE, 聚偏氟乙烯, PFA
- 通道数量
- 2位2通
- 其他特性
- 标准, 紧凑型, 整体式
- 通径
最少: 4 mm
(0.157 in)最多: 25 mm
(0.984 in)- 压力
最少: 0 bar
(0 psi)最多: 6 bar
(87 psi)- 温度
最少: 0 °C
(32 °F)最多: 60 °C
(140 °F)-10 °C, 200 °C
(14 °F, 392 °F)
产品介绍
High-purity, compact PFA/PTFE valve for handling critical media
The high-purity 2/2-way plastic GEMÜ C50 iComLine diaphragm globe valve has a pneumatic actuator. All media wetted parts are made of PFA or PTFE. The external actuator parts are made of PVDF. An integral optical position indicator is standard. In addition to 2/2-way valve bodies, customized multi-port valve block solutions can be produced.
The high-purity 2/2-way plastic GEMÜ C50 iComLine diaphragm globe valve has a pneumatic actuator. All media wetted parts are made of PFA or PTFE. The external actuator parts are made of PVDF. An integral optical position indicator is standard. In addition to 2/2-way valve bodies, customized multi-port valve block solutions can be produced.
- Low space requirement due to compact design
- Integration in space-saving multi-port valve block solutions
- Clean room production, fulfils SEMI F57
- Ideally suited for corrosive media
- Choice of design with PTFE-coated screws and compression springs
