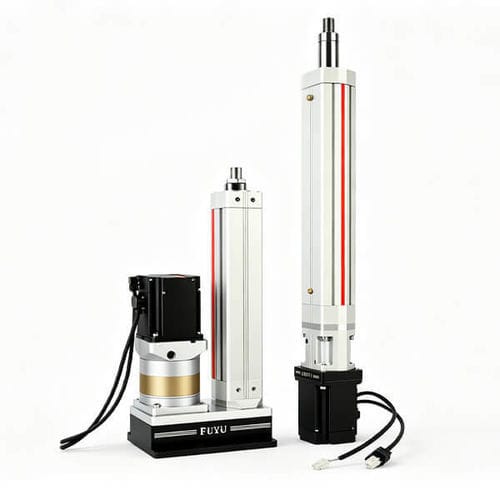

电动执行器

线性滚珠丝杠杆式

Short Description
6063 high-strength aluminum alloy cylinder body (strength increased by 15%) providing higher impact resistance and high thrust load capacity. 33% increase in cross-sectional area to prevent bending or deformation under heavy loads. 45# high-strength steel with hard chrome plating for extreme wear resistance, rust and corrosion protection. External circulation ball screw nut parameter table included. Worry-free performance: 2-Year or 1000km support.

Highlights

• High-strength 6063 aluminum alloy cylinder body (15% strength increase)
• Increased cross-sectional area (+33%) for improved stiffness
• 45# high-strength steel rod with hard chrome plating for wear and corrosion resistance
• External circulation ball screw nut (parameter table provided)
• IP65 protection rating for outdoor/dustproof use
• Warranty/support: 2 years or 1000 km

Key Performance Data

• Load Capacity: 1000 kg
• Protection Rating: IP65
• Position Accuracy: 0.02 mm
• Stroke Length: 800 mm
• Speed Range: 400 mm/s
• Operation Temperature (max): 55°C

Product Details and Visuals
Product detail section contains parameter diagrams, product drawings, installation method illustrations and detail photos (presented as images/figures).

Applications
Suitable for high-load linear motion applications requiring waterproof/dustproof performance, high position accuracy and robust structural strength.

Caractéristiques / spécifications techniques

• Material (cylinder body): 6063 high-strength aluminum alloy
• Material (rod): 45# high-strength steel with hard chrome plating
• Thrust: 10000 N (nominal product name indicates thrust capability)
• Load Capacity: 1000 kg
• Protection Level: IP65
• Position Accuracy: 0.02 mm
• Stroke: 800 mm
• Max Speed: 400 mm/s
• Operating Temperature: up to 55°C
• Ball screw: external circulation ball screw nut (parameter table available)
• Warranty/Support: 2 years or 1000 km
